13.3 Repair / replacing the control unit
13.3.1
Remove the Bluetooth PCB

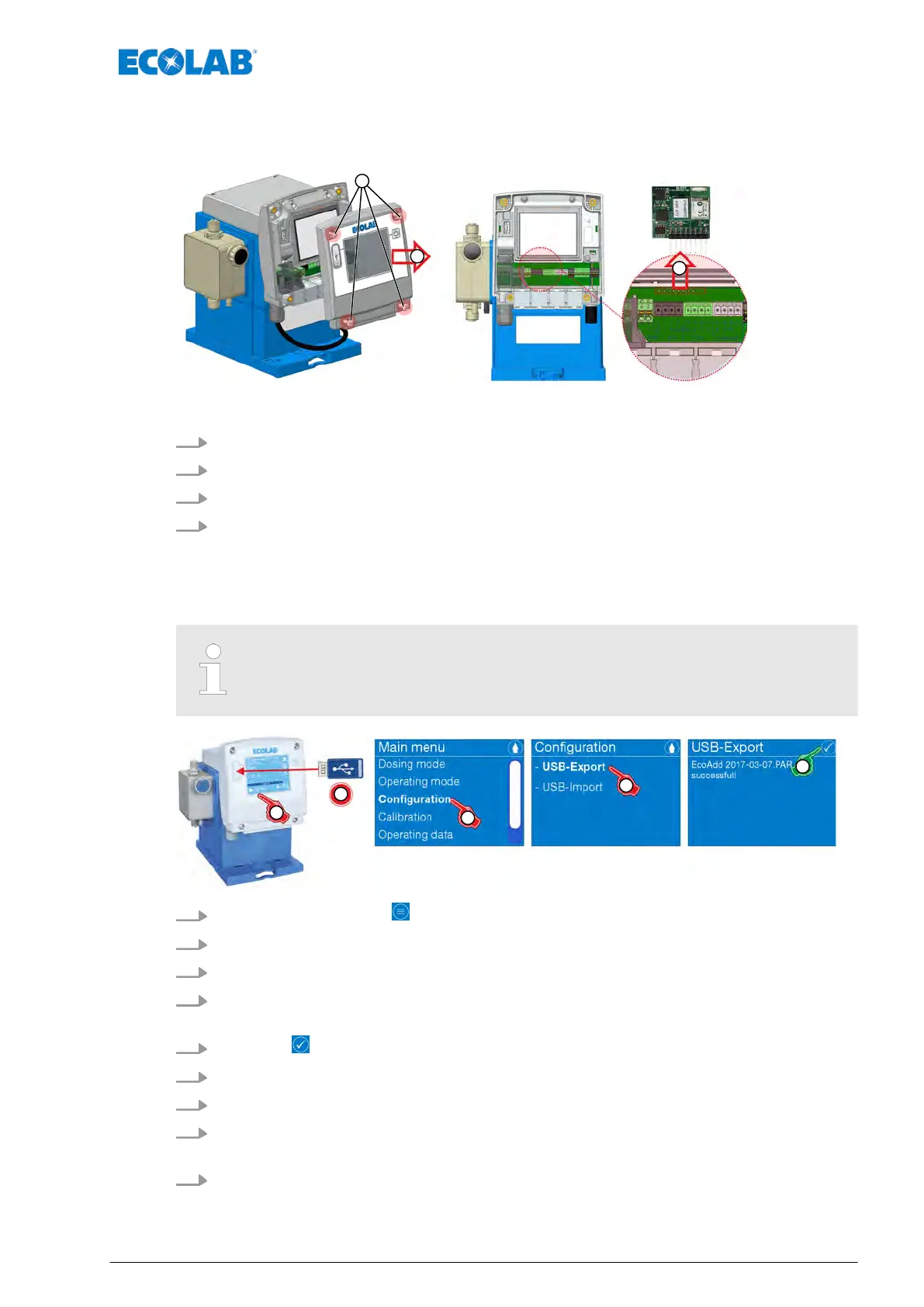

Fig. 107: 417102276_13-4
1. Unfasten cover screws (x 4) using a T
orx wrench (TX25).
2. Remove the lid forwards.
3. Remove the Bluetooth PCB from the slot.
4. Fit the Bluetooth PCB into the new control unit.
13.3.2 Create a backup and import back onto the new control unit following conversion
See also chapter
Ä
Chapter 7.14 ‘Import and export functions’
on page 130
1.
Press the Menu button .
2. Insert the USB stick containing the configuration into the USB port on the pump.
3. Select Configuration [from the] [main menu] .
4. [Select USB export] .
ð
An export file (*.P
AR) is copied to the USB stick.
5.
Press the button.
6. Remove the USB stick from the USB port.
7. Switch of
f the pump and disconnect from the mains.
8.
Exchange the control unit
Ä
Chapter 13.1.1 ‘Rotating the control unit’ on page 176
as described.
9. Import the configuration back to the new control unit.
Conversion, upgrade, repair
179 417102276 Rev. 5-02.2020
