12.2.4 Pump head 30 l/h and 50 l/h
A
1
2
3
5
6
7a
9
4
7b
8a
8b
10

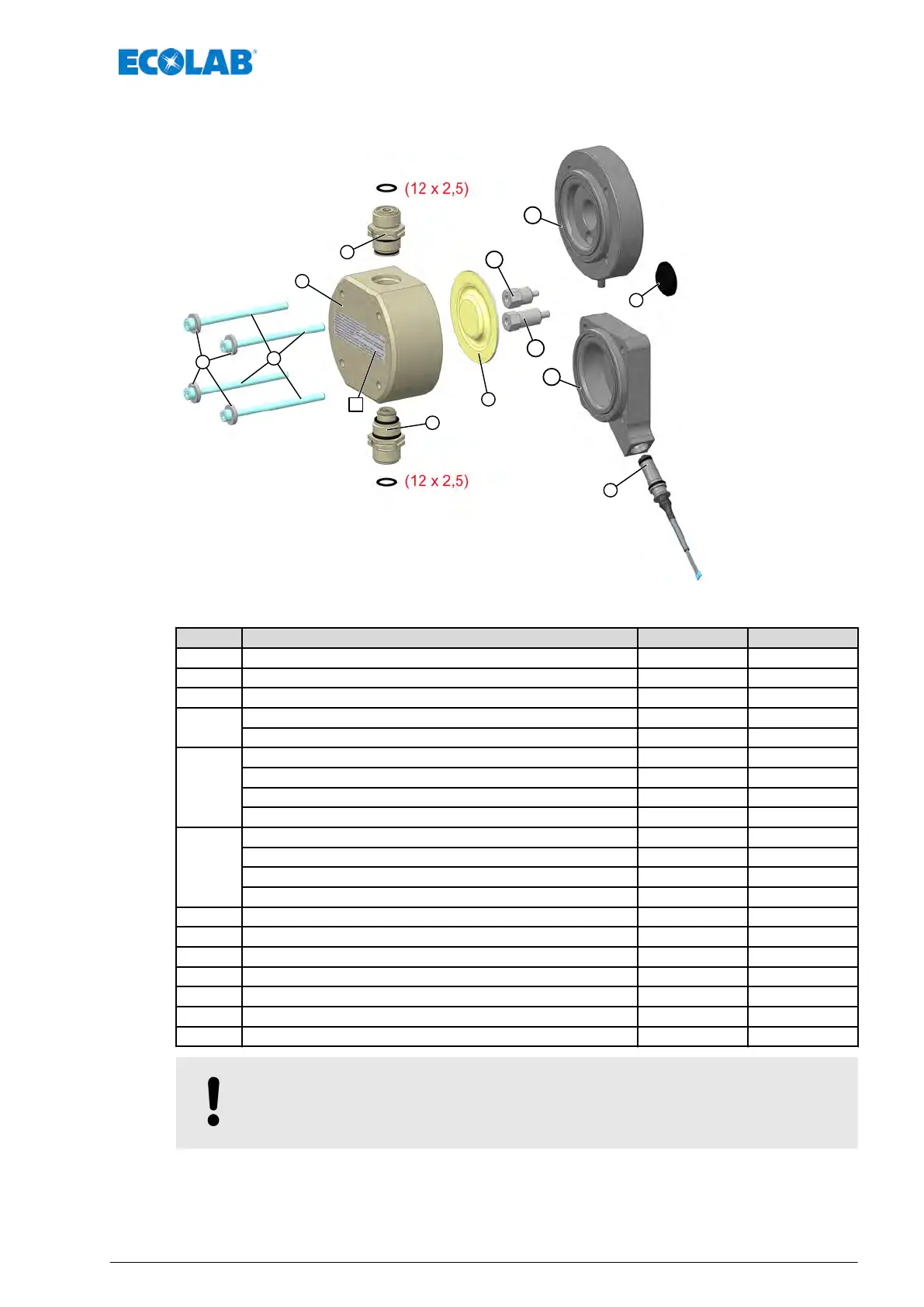

Fig. 102: Replacement part module: Pump head 30 l/h and 50 l/h
Pos. Description Item No. EBS No.
A Adhesive label for commissioning / tightening torque (6 Nm) 34900291 on request
1 Hexagon socket screw, M 6 x 90, DIN 912, V2A 413031148 on request
2 Washer, 17 x 6.4 x 3 DIN 7349 V2A 413501304 on request
3
Pump head, 30/50 l/h, PP 35200116 on request
Pump head, 30/50 l/h, PVDF 35200117 on request
4
Suction valve, PFC-000 G5/8-G5/8-99 252024 on request
Suction valve, PEC-000 G5/8-G5/8-99 252025 on request
Suction valve, DFC-000 G5/8-G5/8-99 252026 on request
Suction valve, DEC-000 G5/8-G5/8-99 252027 on request
5
Pressure valve, PFC-000 G5/8-G5/8-99 252020 on request
Pressure valve, PEC-000 G5/8-G5/8-99 252021 on request
Pressure valve, DFC-000 G5/8-G5/8-99 252022 on request
Pressure valve, DEC-000 G5/8-G5/8-99 252023 on request
6 Diaphragms 35200120 on request
7a Diaphragm extension, 30 l/h 35200121 on request
7b Diaphragm extension, 50 l/h 35200148 on request
8a Intermediate plate 35200118 on request
8b Intermediate plate with sensor mount 35200119 on request
9 Diaphragm rupture sensor, complete 252081 on request
10 Protective membrane 35200137 on request
NOTICE!
During assembly
, it is essential to observe the tightening torque attached to
the pump head! See also
Ä Chapter 14.6 ‘Tightening torques’ on page 185
Wearing parts and spare parts
173 417102276 Rev. 5-02.2020
