5.2 Connection sockets / cable bushings
1 2 3 4 5 6

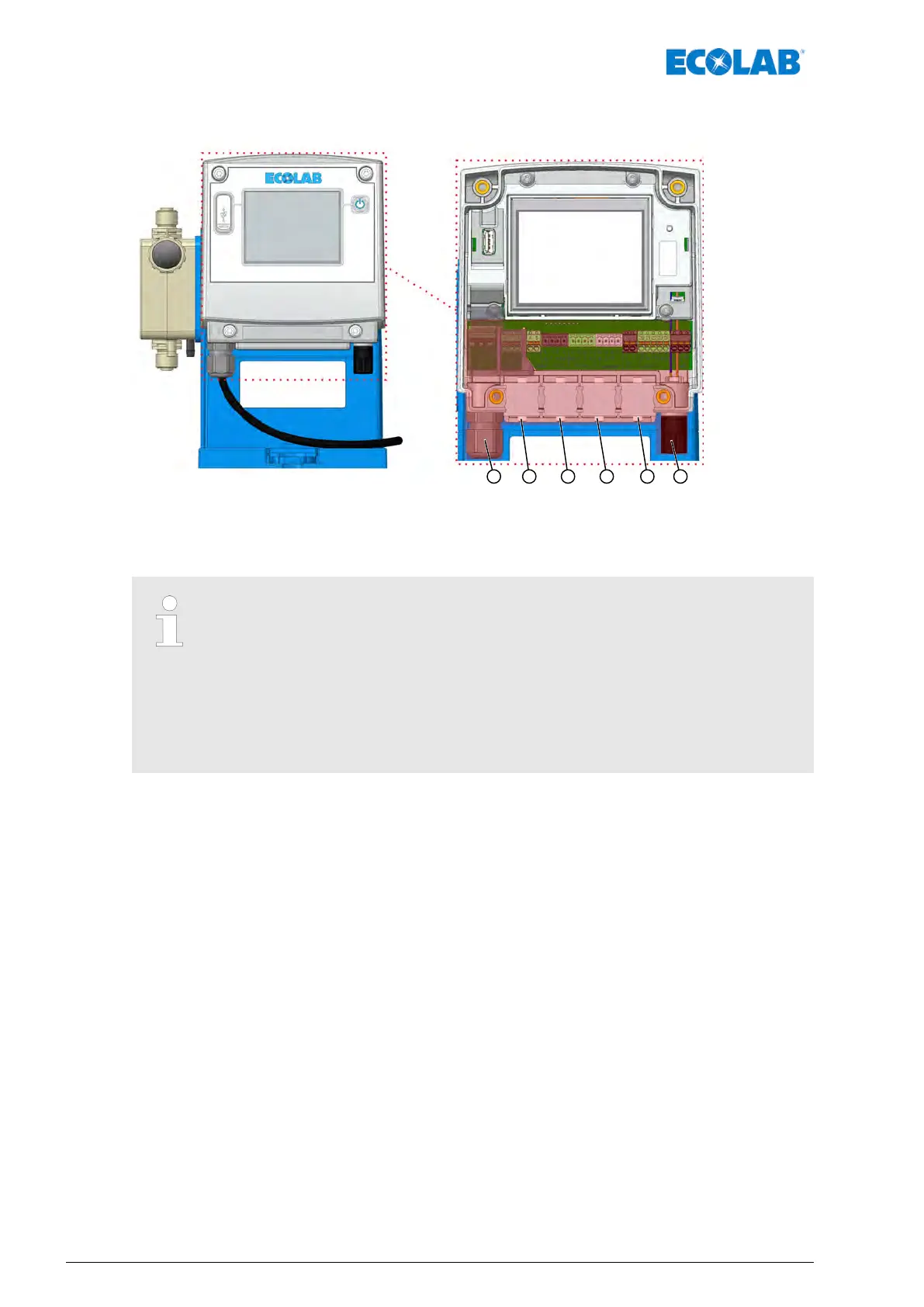

Fig. 5: Connections ‘EcoAdd’
1 Mains cable bushing / Mains connection
2-5 Cable bushings to the main board with terminals
6 Level monitoring (suction lance connection)
The connection is described in
Ä Chapter 6.4 ‘Electrical installation’
on page 56 .
Permissible external cable diameters for connecting the inputs/outputs:
AD Ø = 5.1~5.7 mm (pos. 2~5).
Permissible cables: LIYY 4x 0.5; LIYY 5 x 0.34; LYCY 2 x 0.34; Ölflex 4 x
0.5
The IP Code IP65 is applicable only when the specified cable is being
used.
Description of the pump
40417102276 Rev. 5-02.2020
