12.2.1.2 Display cover - control unit ‘EcoAdd
’
1
2
3
4
5
6
7
8
9
10
11
12
13a
13b
13
14
15
16
17
18

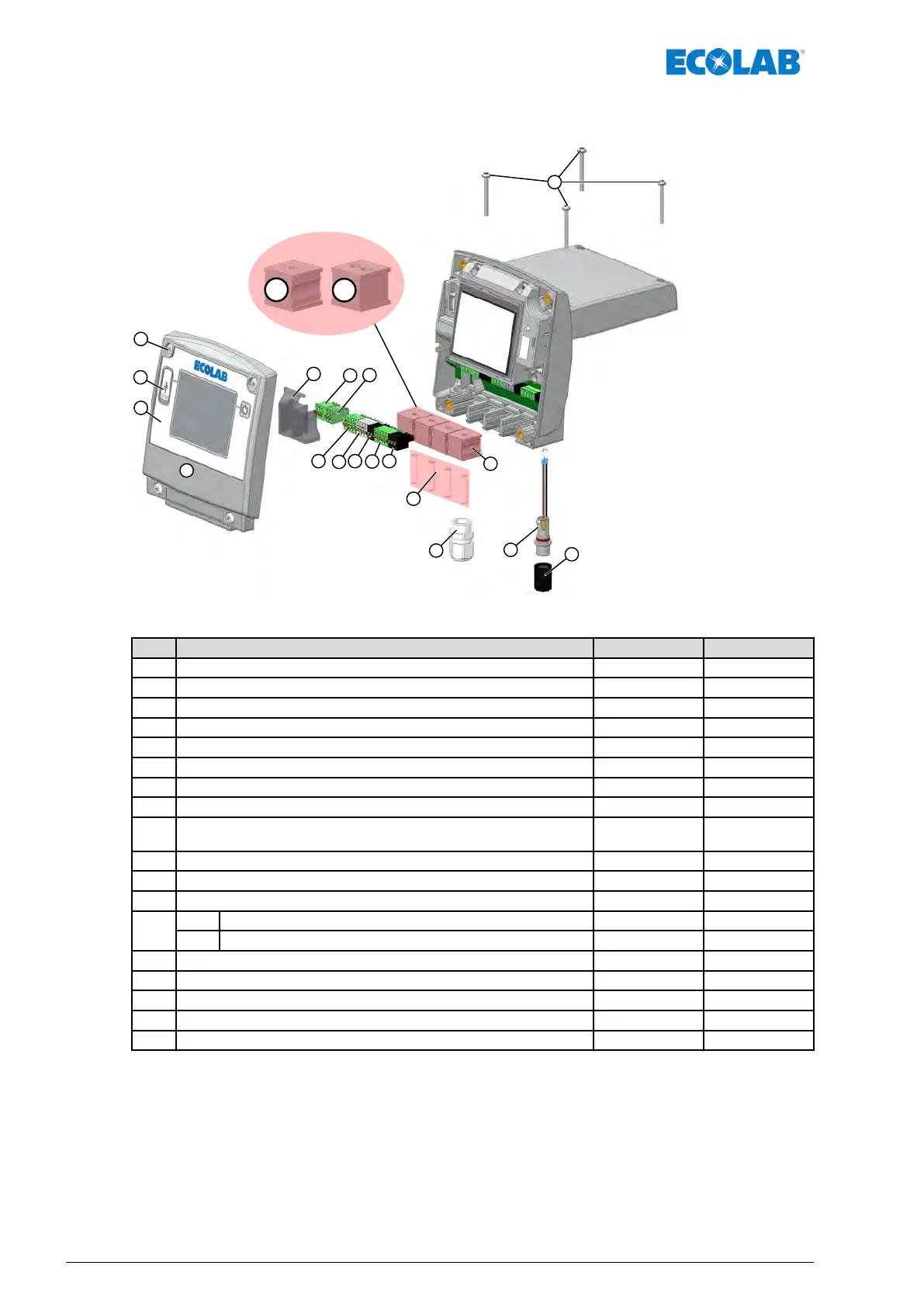

Fig. 99: Spare part module: Display cover - control unit ‘EcoAdd’
Pos. Description Item No. EBS No.
1 Front sticker 35200141 on request
2 Shaft bolt, M 5 x 20 413123501 on request
3 USB plug 35200125 on request
4 Display cover with seal 35200127 on request
5 Voltage cover (cover power) 35200130 on request
6 Plug-in terminal, 2-pole, green alarm output 418461692 on request
7 Plug-in terminal, 2-pole, green stroke signal output 418461690 on request
8 Plug-in terminal, 4-pole, green flow monitoring input 418461694 on request
9 Plug-in terminal, 4-pole, grey diaphragm breakage monitoring
input
418461696 on request
10 Plug-in terminal, 2-pole, black power control input 418461691 on request
11 Plug-in terminal, 5-pole, green pulse control input 418461697 on request
12 Plug-in terminal, 3-pole, black level monitoring input 418461693 on request
13
13a Cable bushing KT5 Ø 5 grey, for one cable (standard) 417028631 on request
13b Cable bushing KT2/5 2xØ5 grey, for two cables 417028632 on request
14 Plug for cable sleeves ST5 Ø 5 mm, white 417028641 on request
15 Cable union M 16 x 1.5 PA/GR 418441002 on request
16 Empty signal plug, 3-pole 35200123 on request
17 Dummy connector - empty signal input 248186 on request
18 EJOT DELTA PT bolt 35 x 35 WN5451 V2A 413070100 on request
Wearing parts and spare parts
170417102276 Rev. 5-02.2020
