Maintenance 4. Cable
N6 Rev.2 151

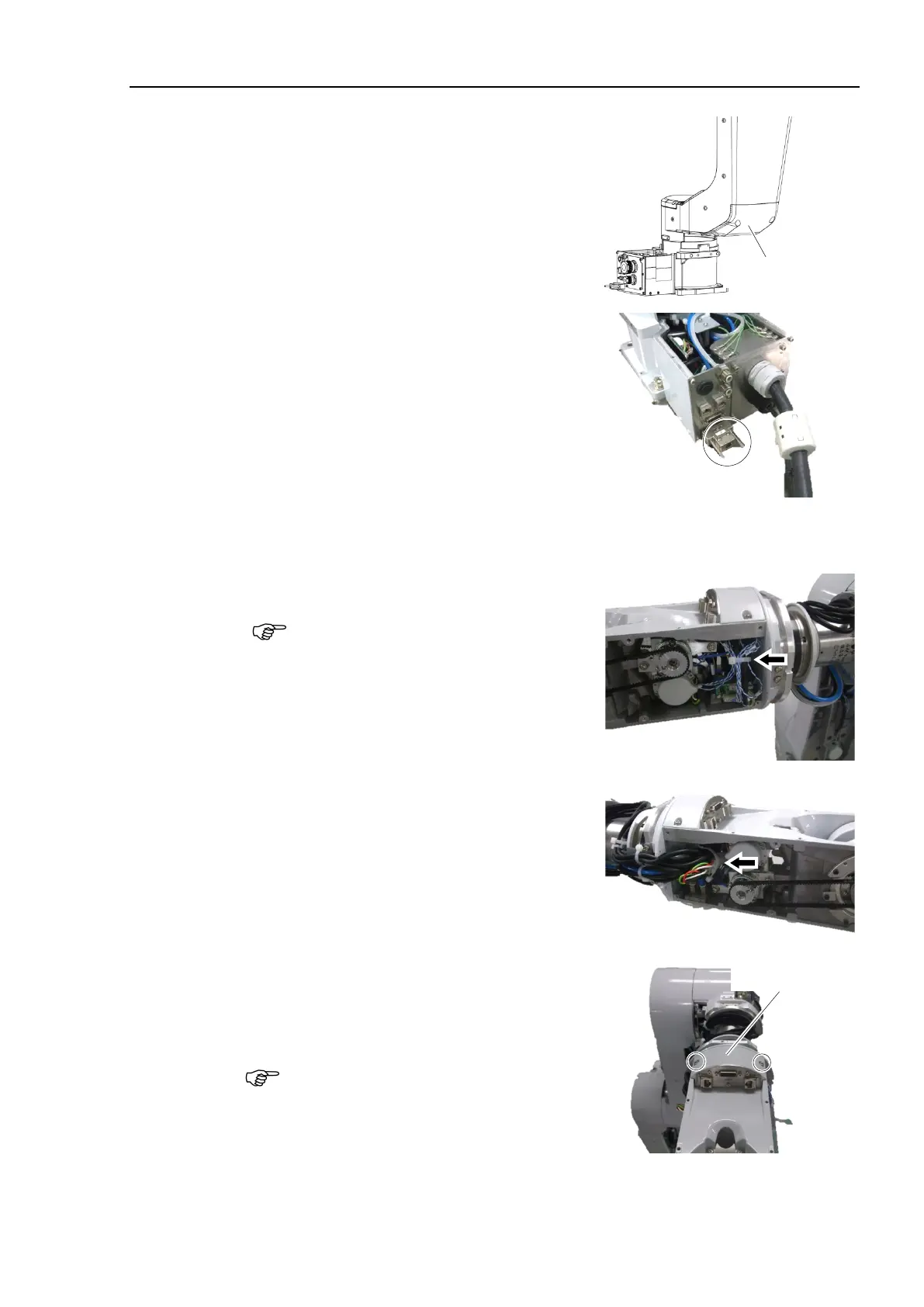

Remove the Arm #1 outside cover.
Hexagon socket head cap bolts:
8-M5×20 (with plain washer)
Disconnect the external short connector.
Disconnect the M/C cable.
For details, refer to Maintenance 4.6. M/C Cable.
Cut off the cable tie of the cables.
Be careful not to cut the cables.
Remove the user attachment of the Arm #4.
Hexagon socket head cap bolts: 2-M4×8
Cables are connected to the user
attachment.
When you disconnect the
cables, make sure not to pull the user
attachment forcibly.
To Next Page
