Maintenance 4. Cable
152 N6 Rev.2

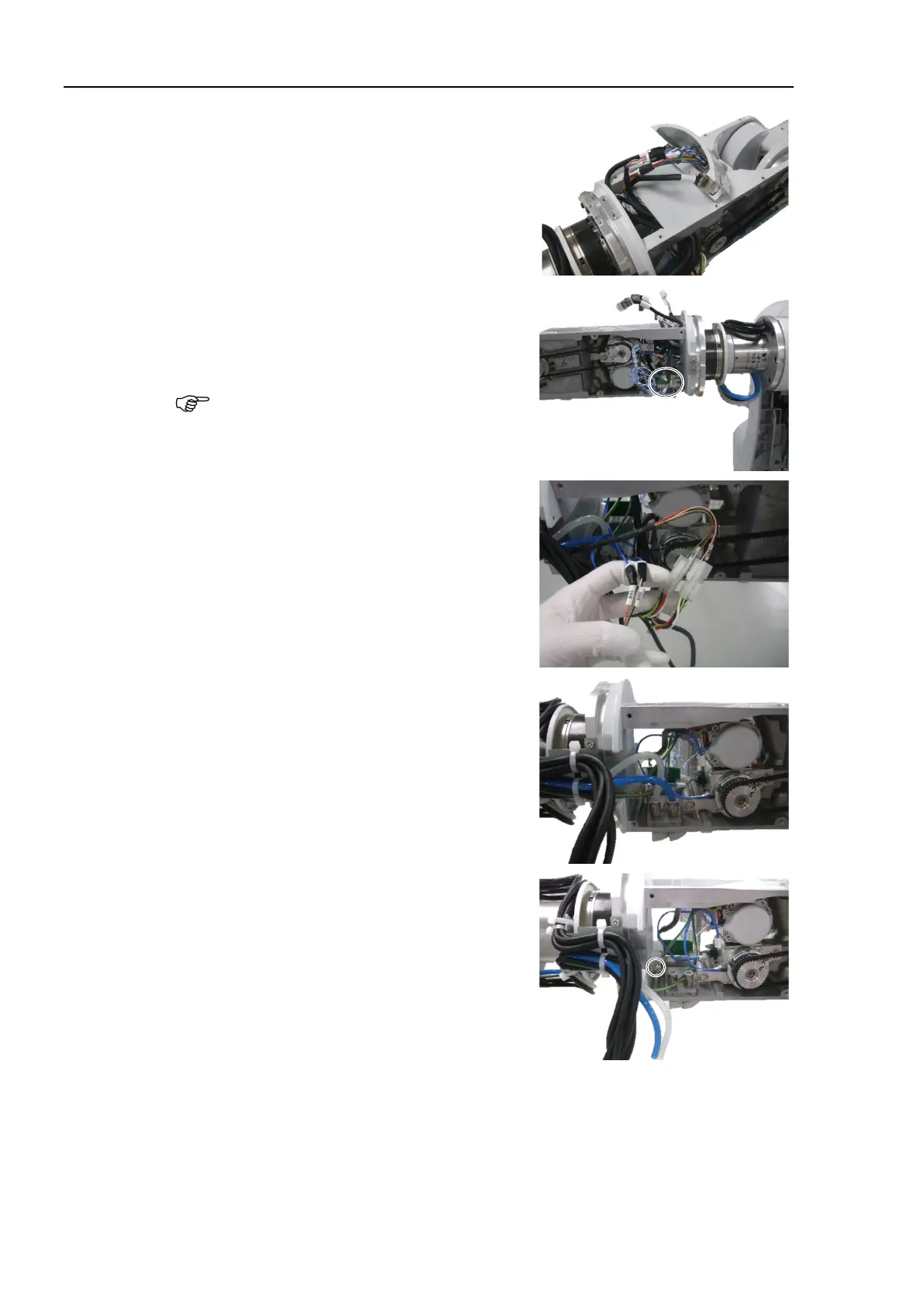

Disconnect the connectors from the user
attachment.
Connectors: Ether1, Ether2, X71, X72
Disconnect the connector connected to the
encoder board 4.
Connector: EB05_CN1
Be careful that the jumper pins on the
board do not come off.
Connectors: PW5, PW6, BR5, BR6
Remove the two air tubes.
Remove the ground wire terminals.
Cross recessed binding head machine
screw: M4×8
To Next Page
