Maintenance 4. Cable
N6 Rev.2 153

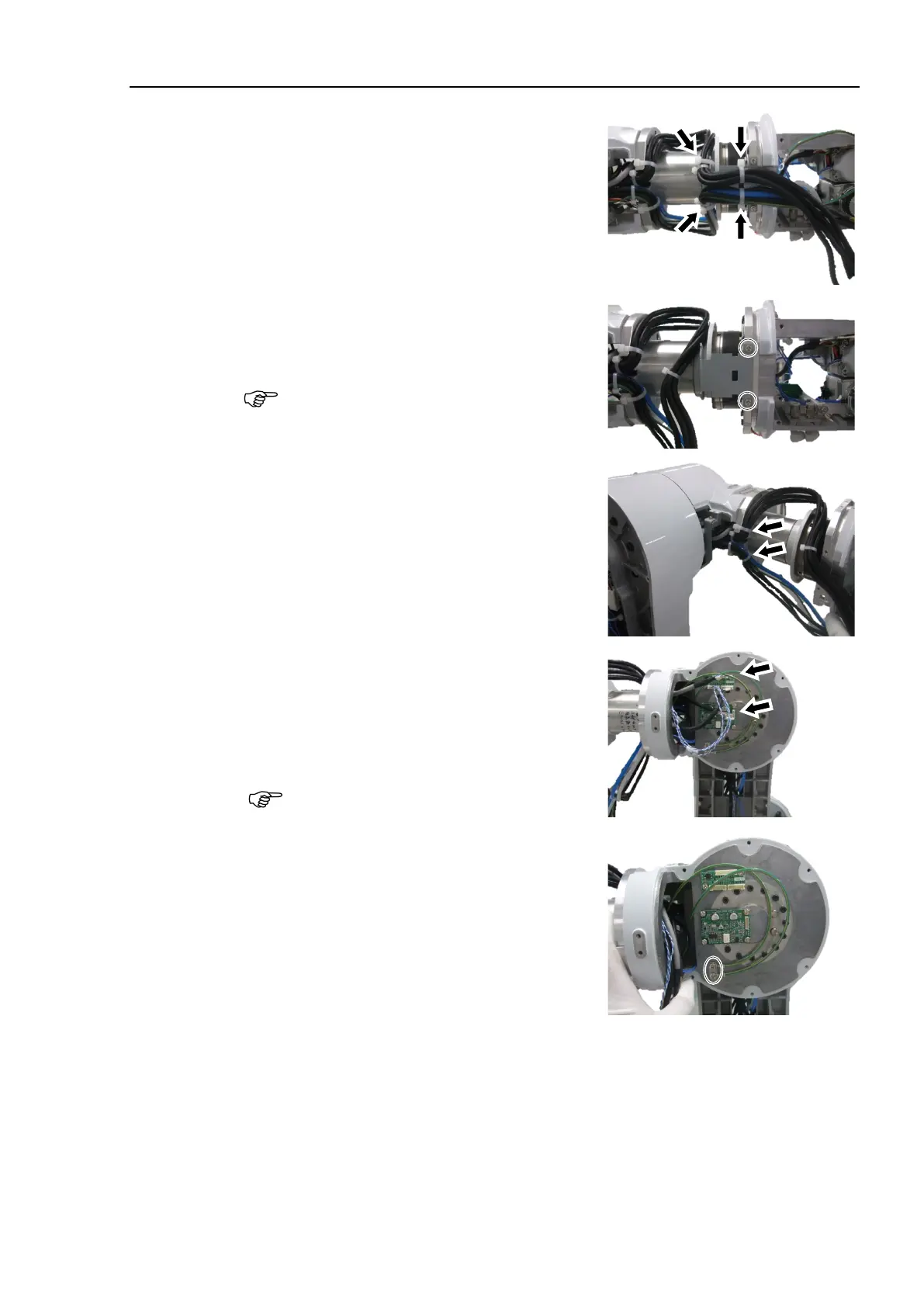

(16)
Cut off the cable tie that fixes the cable unit
to the plate.
(17)
Remove the cable fixing plate.
Hexagon socket head cap bolts: 2-M4×8
Be careful not to lose the removed
cable
fixing plate.
(18)
Cut off the cable tie of the flange on the
Joint #4 actuator unit.
(19)
Disconnect the connectors connected to the
encoder board 3 and the control
board 2.
Connectors: EB04_CN1, EB04_CN3,
EB0x_CN2, GS02
Be careful that the jumper pins on the
board do not come off.
(20)
Remove the two ground wire terminals.
Cross recessed binding head machine
screws: 2-M4×8

