Maintenance 4. Cable
166 N6 Rev.2
(9)

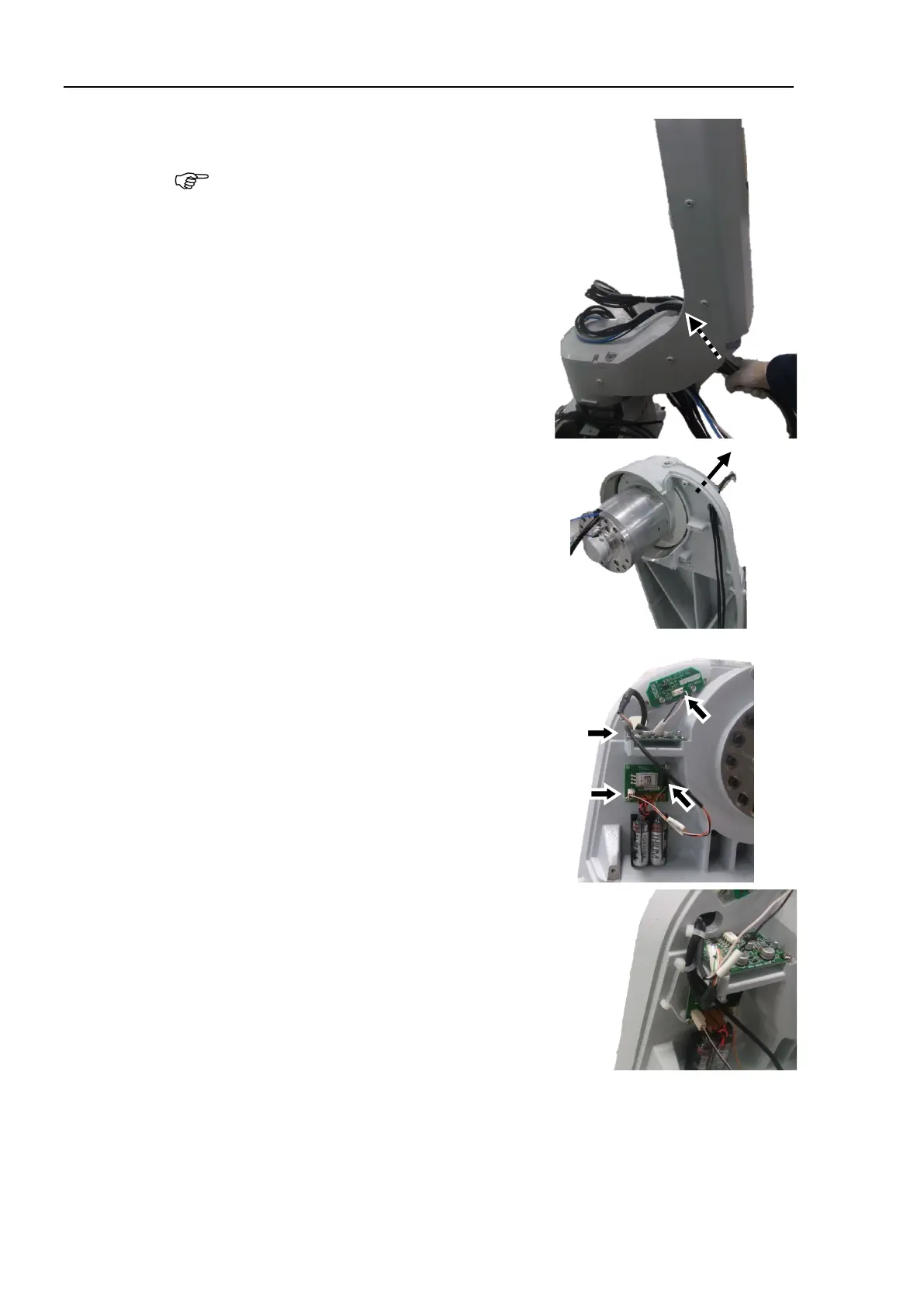

Pass the cable unit to the Arm #1.
Do not pass the cables forcibly while the
connectors get caught.
Doing so may result
in
disconnection of the cables or breakage of
the connectors.
(10)
Pass the cables (connectors) through the hole
on the end of the Arm #1
Cables (connectors):
BAT_CN3, BAT_CN6
GS01,
LED_CN1
(11)
Fix the cables on the Arm #1.
Cable ties (AB150) × 4

NOTE
