Maintenance 4. Cable
N6 Rev.2 167
(12)

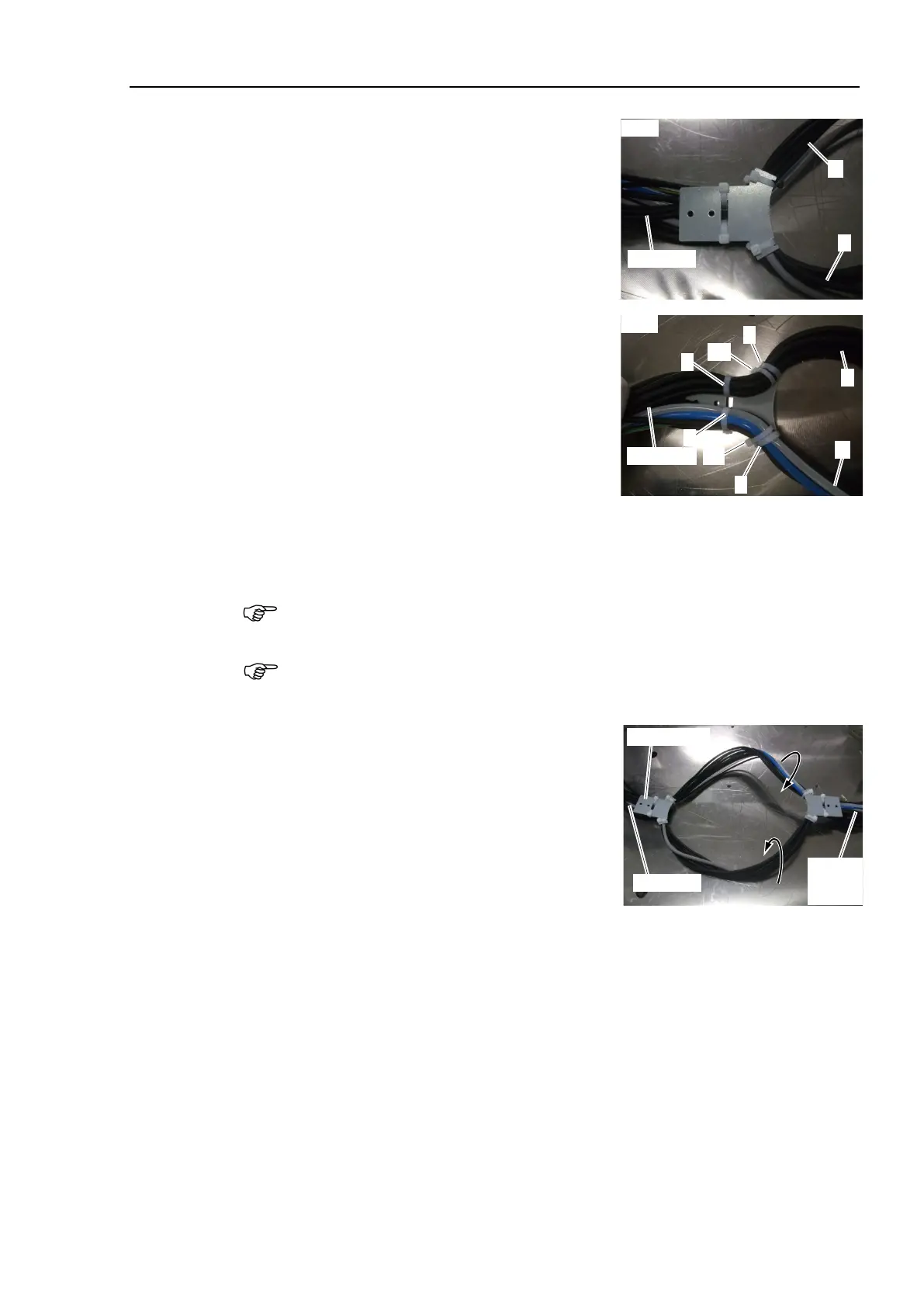

Fix the cable unit to the cable fixing plate.
Be careful for the following:
Cable ties (AB200) × 4 (1 to 4)
Tightening strength: 85 ± 5 N
Front
A
B
Base side
C
able A
Set the A3 of the cable tie to the cable
fixing plate and fix it by using the cable
ties 1 and 2. Make sure that the gray
colored cable is on the plate side.
C
able B
Set the B3 of the cable tie to the cable
fixing
plate and fix it by using the cable
ties 3 and 4. Make sure that the two air
tubes (blue and white) are on the opposite
side of the plate.
Back
B
A
1
3
B3
A3
Base side
2
4
Refer to the figure for positions of the cable tie heads.
Rotate the
heads of the cable ties A3 and B3 to set positions.
Be careful for the orders and the positions of the cable ties.
Distance between the cable tie 1 and A3, and 3 and B3 should be as close as possible.
Improper order or position of the
cable tie may shorten the life cycle of the cables.
(13)
Fix the cable unit to the cable fixing plate
with twisting 180 degrees.
Be careful for the following:
Cable ties (AB200) × 4 (1 to 4)
Tightening strength: 85 ± 5 N
Plate of (12)
Base side
End
effector
side

