Maintenance 4. Cable
N6 Rev.2 179

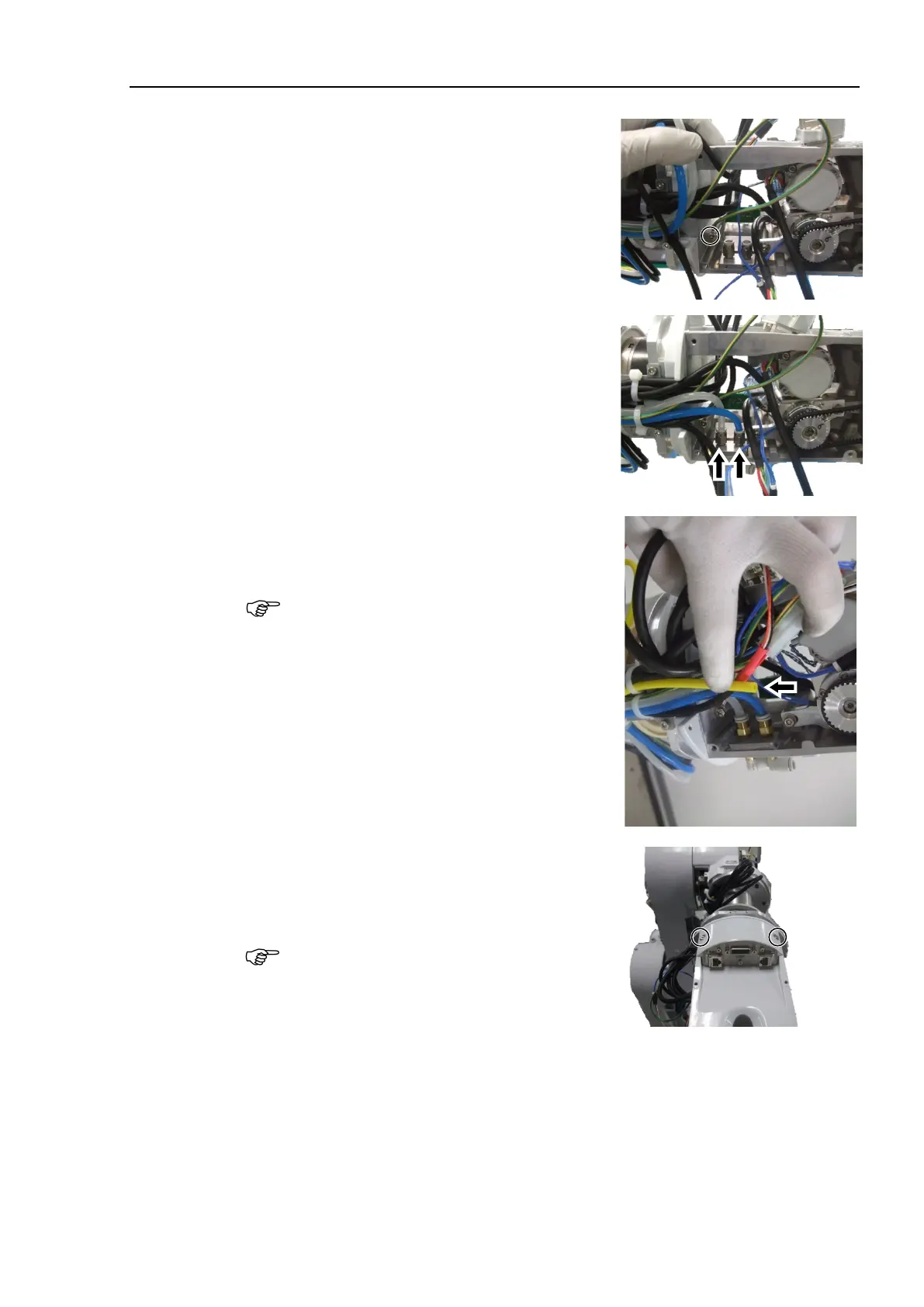

Install the ground wire terminals.
Cross recessed binding head machine screw:
M4×8
Tightening torque: 0.9 ± 0.1 N·m
Cut the two air tubes with proper length and
connect them to fittings.
Air1: White
Air2: Blue
the yellow air tube
with the length as shown in the picture.
Make sure that the air tube does not interfere
with the pulley or belt.
Install the user attachment on the Arm
#4.
Hexagon socket head cap bolts: 2-M4×8
Tightening torque: 4.0 ± 0.2 N·m
Be careful not to get the cables caught.
