Maintenance 4. Cable
180 N6 Rev.2
(52)

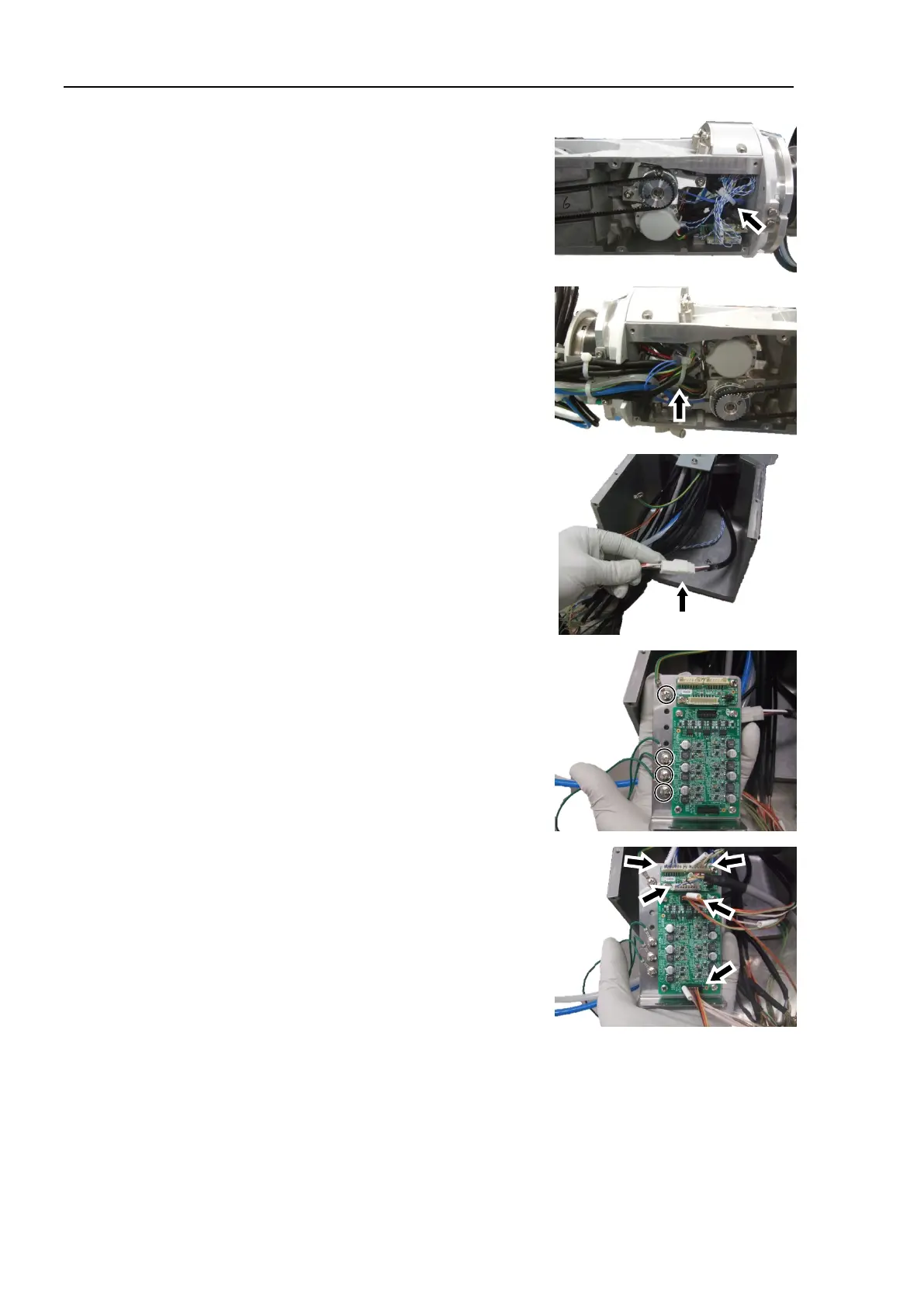

Bundle the cables with the cable tie to prevent
the cables from interfering with the pulley or
belt.
Cable ties (AB200) × 2
(53)
Connect the connector.
Connector: PW1
(54)
Install the four ground wire terminals except
the connector X11, X12 to the
board fixing
plate.
Cross recessed binding head machine screws:
4-M4×8
Tightening torque: 0.9 ± 0.1 N·m
(55)
Connect the connectors to the encoder board 1
and the brake board.
Connectors:
EB01_CN1, EB01_CN3, EB0x_CN2
BRK_CN1, BRK_CN2
