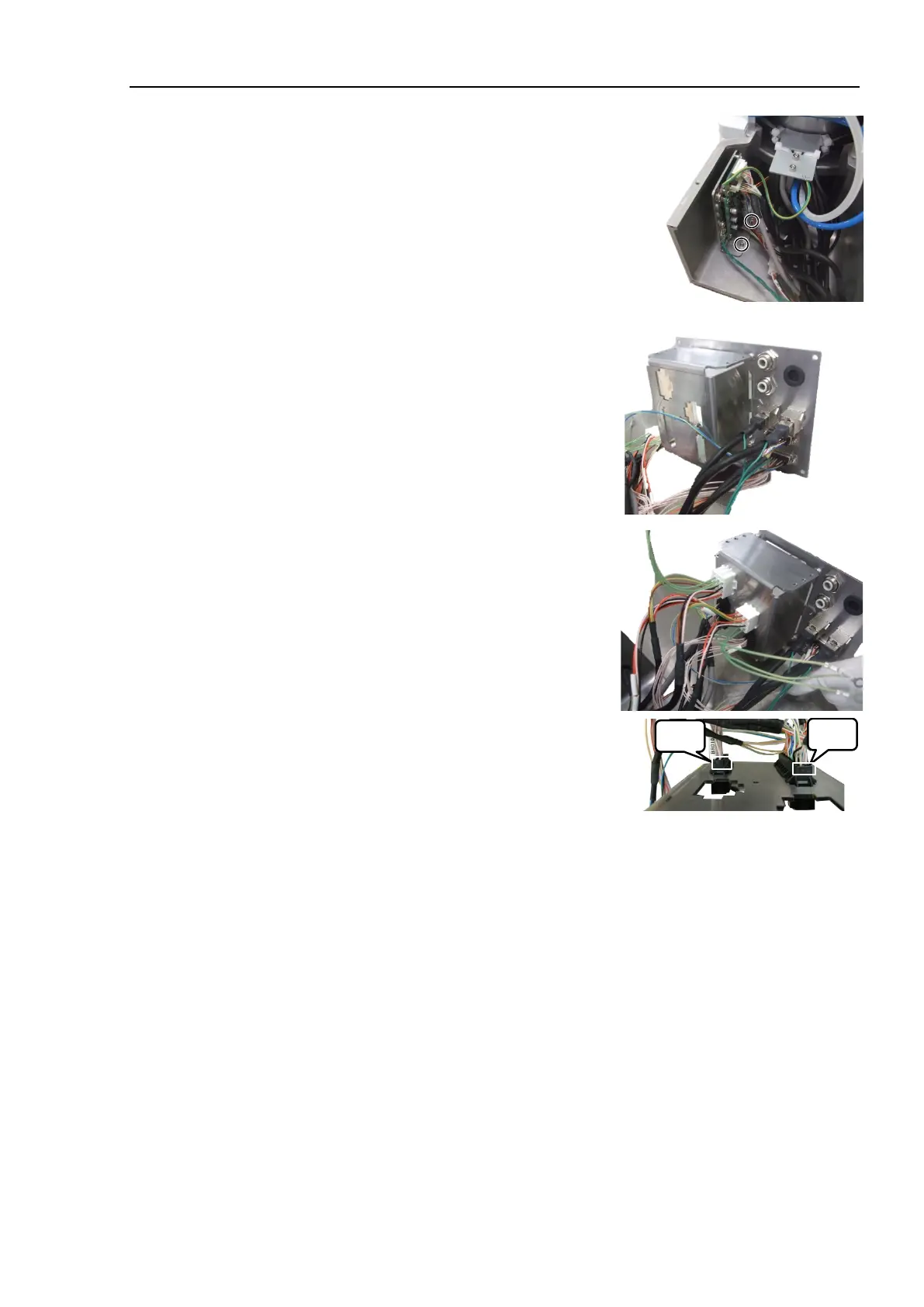

Maintenance 4. Cable
N6 Rev.2 181
(56)
Install the board fixing plate in the back of the
base.
Hexagon socket head cap bolts: 2-M3×6
Tightening torque: 2.0 ± 0.1 N·m
(57)
Connect the connectors to the base
side plate.
Connectors: Ether1, Ether2, D-sub, SW1
(58)
Connect the connectors to the box
-shaped
plate.
Connectors: X11, X12, X010, BR010
Refer to the right picture for installation
direction of black colored connectors (X010,
BR010).
B A
A B
