Maintenance 4. Cable
N6 Rev.2 247
Installation
Joint #2
Actuator Unit
Relay Cable 1
(1)

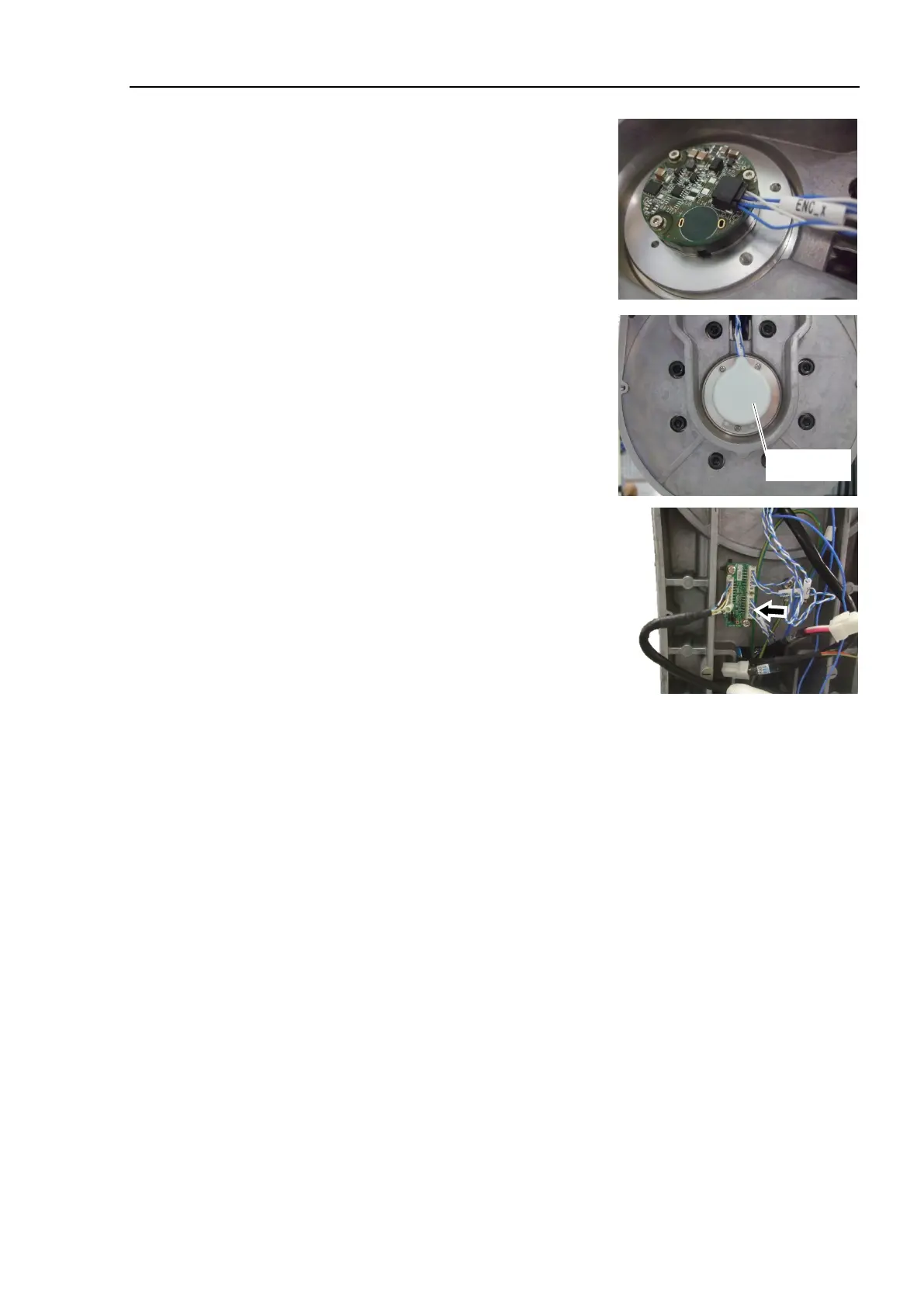

Connect the connector of the relay cable 1 to
the
encoder.
Connector: ENC_x
(2)
Install the encoder cover.
Cross recessed head screws: 3-M2.5×6
Tightening torque: 0.2 ± 0.1 N·m
Encoder
cover
(3)
Connect the connector to the encoder board 2.
Connector: EB0x_CN2
(4)
Install the Arm #2 cover (2 covers).
For details, refer to the following sections:
Maintenance 3.7.1 N6-A1000** (Arm #2 Cover, Arm #1 Side)
Maintenance 3.7.2 N6- A850**R (Arm #2 Cover, Arm #1 Side)
Maintenance 3.8 Arm #2 Cover (Arm #3 side)
(5)
Connect the M/C cable.
For details, refer to Maintenance 4.6. M/C Cable.
(
6)
Perform calibration f
or the Joint #2.
For details, refer to Maintenance 8. Calibration.
