Maintenance 4. Cable
N6 Rev.2 259
Installation
M/C
cable
(1)

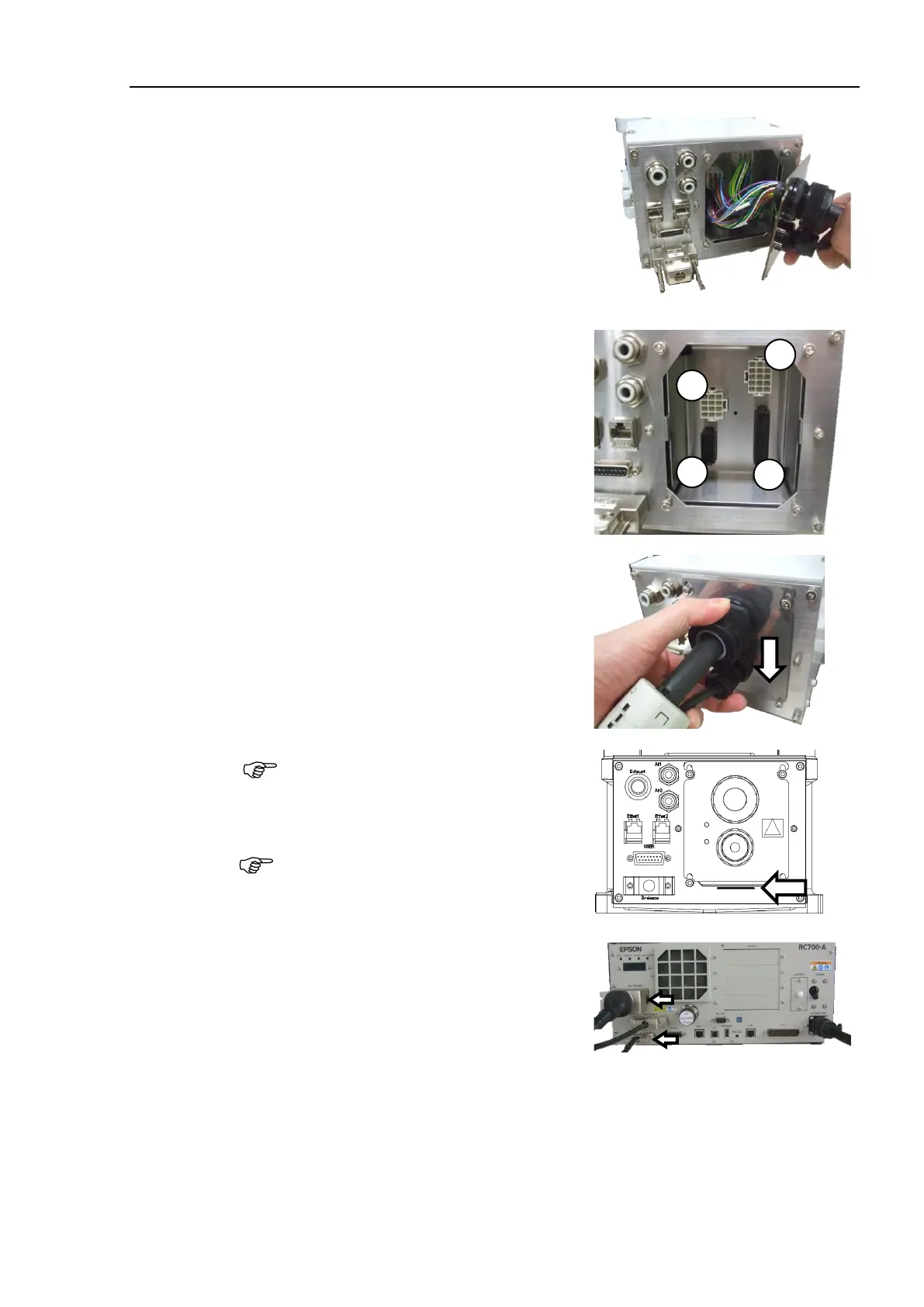

Set the M/C cable as shown on the right.
(2)
Connect the connectors in the order as
shown
on the right.
1
2
3
4
(3)
Slide the plate downward to install it.
Hexagon socket head cap bolts: 4-M4×8
Tightening torque: 4.0 ± 0.2 N·m
Slide the plate until the line on
the base
side plate will not be seen.
Be careful not to tighten the screws with
the cables get caught on the plate
.
(4)
Connect the connectors to the encoder
board 2.
Power cable connector
Signal cable connector
NOTE
NOTE
