Fujitsu PRIMERGY RX100 S8 Upgrade And Maintenance Manual

104 Upgrade and Maintenance Manual RX100 S8
Power supply
6.3.4.2 Removing the defective power distribution board
Ê Remove all power supply units as described in section "Removing a hot-plug
power supply unit" on page 100.

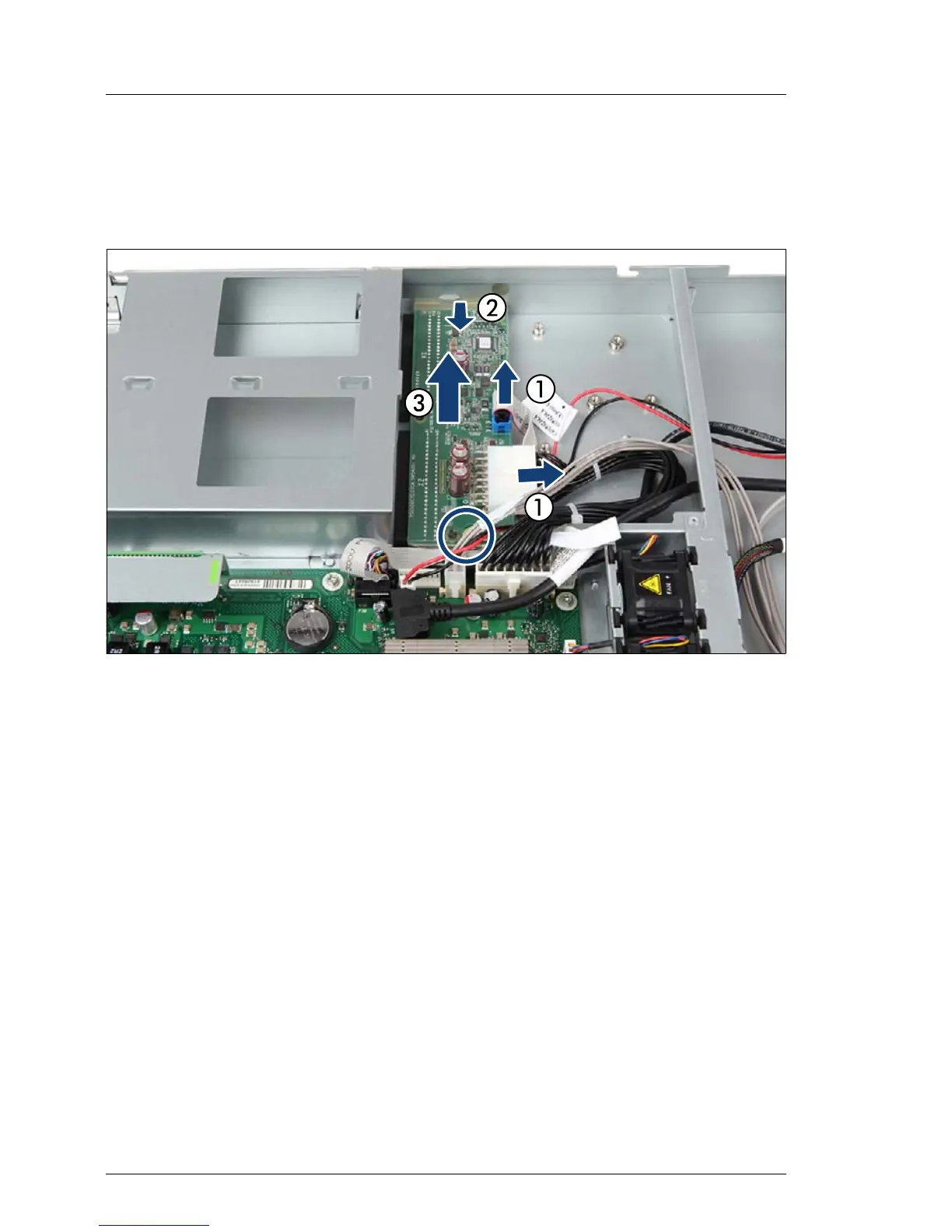

Figure 33: Removing the power distribution board
Ê Disconnect the two power cables from the power distribution board (1).
Ê Remove the screw (see circle).
Ê Slide the power distribution board out of the guidings of the chassis (2) and
take it out upward (3).

Fujitsu PRIMERGY RX100 S8 Specifications

General

CPU Family	Intel Xeon
Memory Type	DDR3
Memory Slots	4
Maximum Memory	32 GB
Network Interface	Gigabit Ethernet
Processor	Intel Xeon E3-1200 v2
Storage	SAS, SATA
RAID Support	RAID 0, 1, 10
Drive Bays	4 x 3.5" or 8 x 2.5"
