RX100 S8
Upgrade and Maintenance Manual 247
System board and components

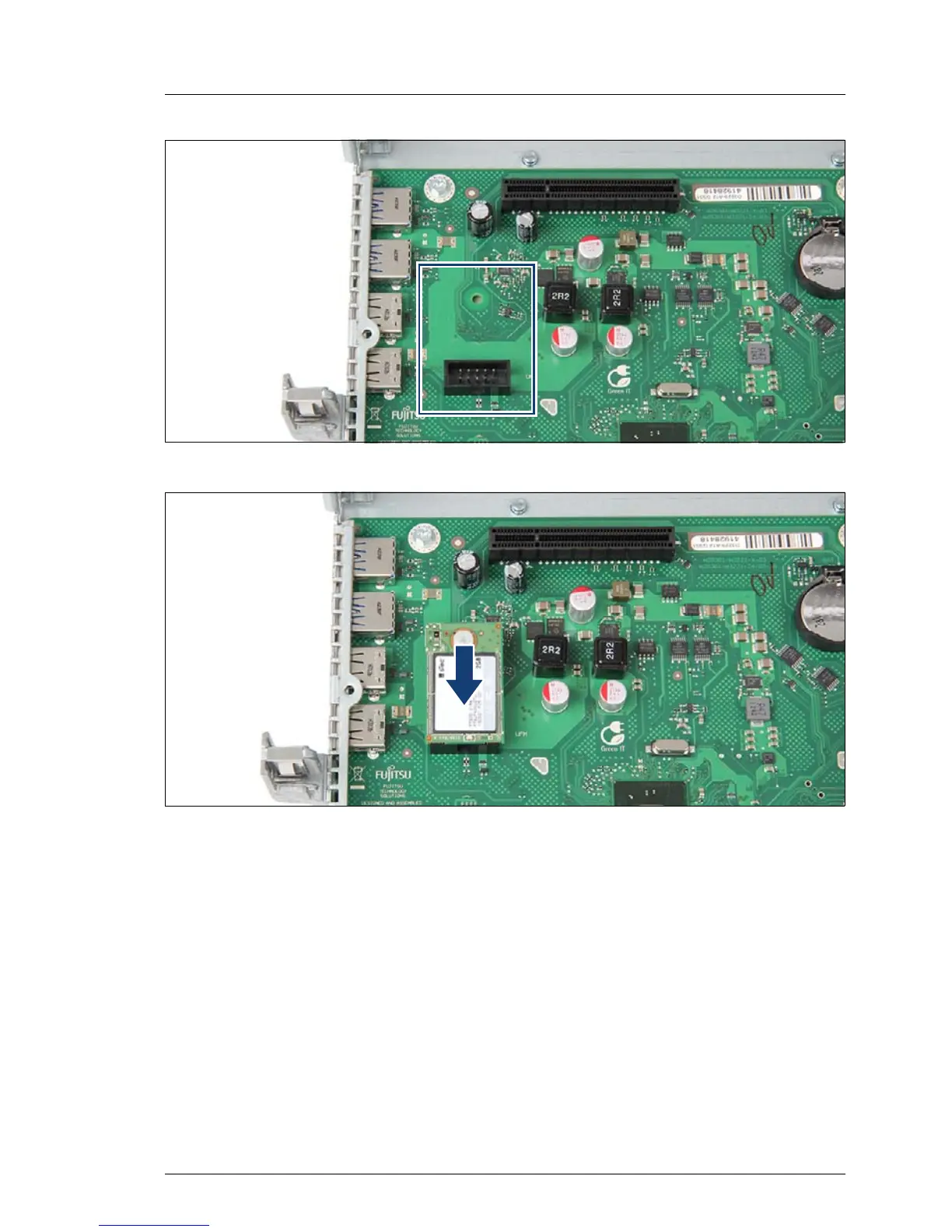

Figure 185: Position on the system board
Figure 186: Installing the UFM
Ê Connect the UFM to the system board. The UFM spacer must click into the
hole on the system board.
14.3.1.3 Concluding steps
Ê Install the riser module 3 as described in section "Installing a riser module"
on page 60.
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Enabling SVOM boot watchdog functionality" on page 78
