126 Upgrade and Maintenance Manual
RX100 S8
Hard disk drives / solid state drives
Right side 4 x 2.5-inch HDD backplane (A3C40157828)

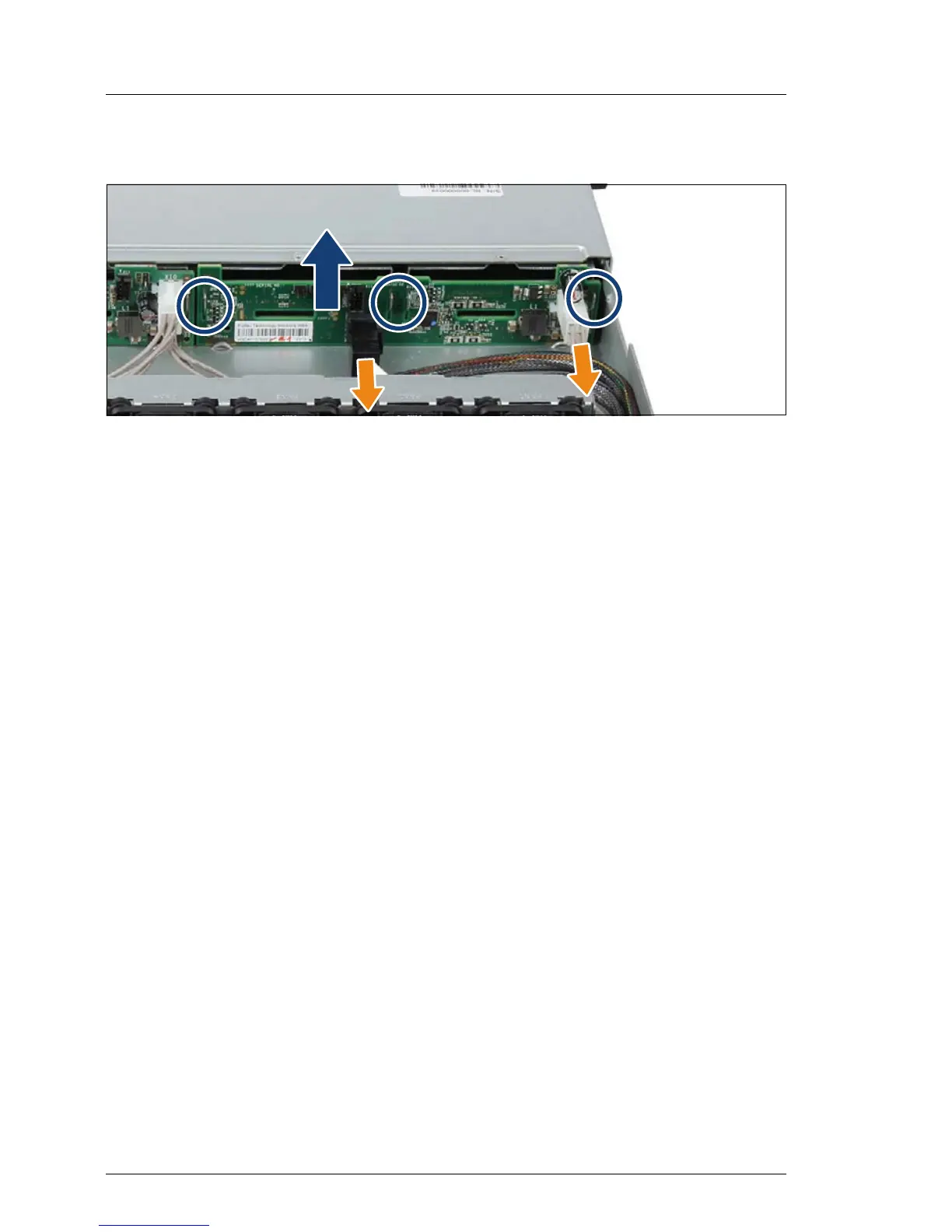

Figure 58: Removing the 4 x 2.5-inch HDD backplane
Ê Disconnect all cables from the HDD backplane (see orange arrows).
I If applicable, remove the OOB cable from the HDD backplane, too.
Ê Pull the HDD backplane upward until the four hooks disengage (see circles).
Ê Take out the HDD backplane.
7.2.8.3 Installing the new 4 x 2.5-inch HDD backplane
I For configurations with up to four 2.5-inch HDDs/SSDs, please refer to:
section "Left side 4 x 2.5-inch HDD backplane (A3C40157852)" on
page 127.
For configurations with up to eight 2.5-inch HDDs/SSDs, please refer to:
section "Left side 4 x 2.5-inch HDD backplane (A3C40157852)" on
page 127 or "Right side 4 x 2.5-inch HDD backplane (A3C40157828)" on
page 129.
