Fujitsu PRIMERGY RX100 S8 - Installing the BBU in the Holder

RX100 S8 Upgrade and Maintenance Manual 187
Expansion cards and backup units
9.5.1.3 Installing the BBU in the holder

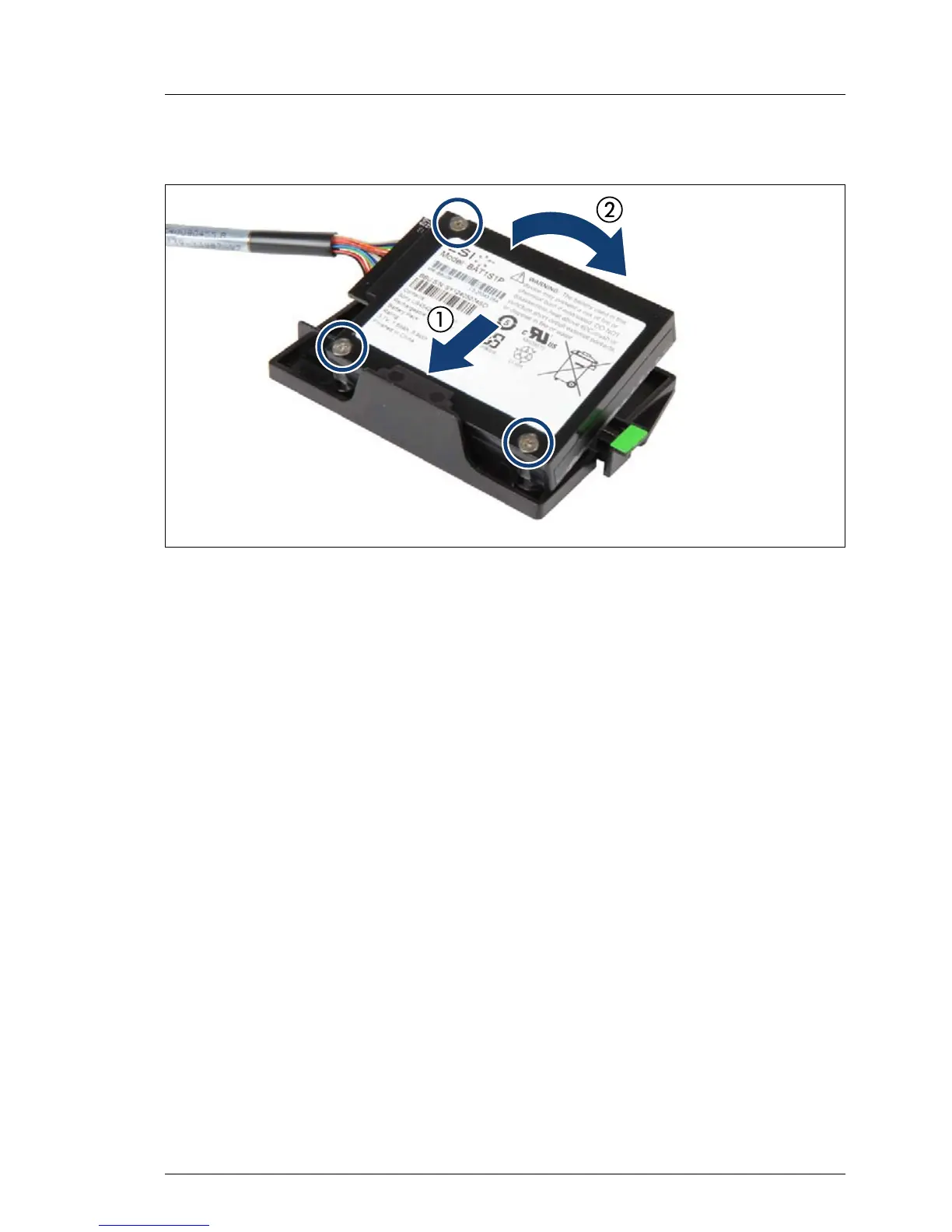

Figure 122: Installing the BBU in the holder
Ê At a slight angle, fit the BBU under the right retaining bracket on the holder
(1).
Ê Fold down the BBU until it locks in place (2).
