Fujitsu PRIMERGY RX100 S8 - Removing the Defective Fan Module

RX100 S8 Upgrade and Maintenance Manual 151
Fans
8.2.2 Removing the defective fan module

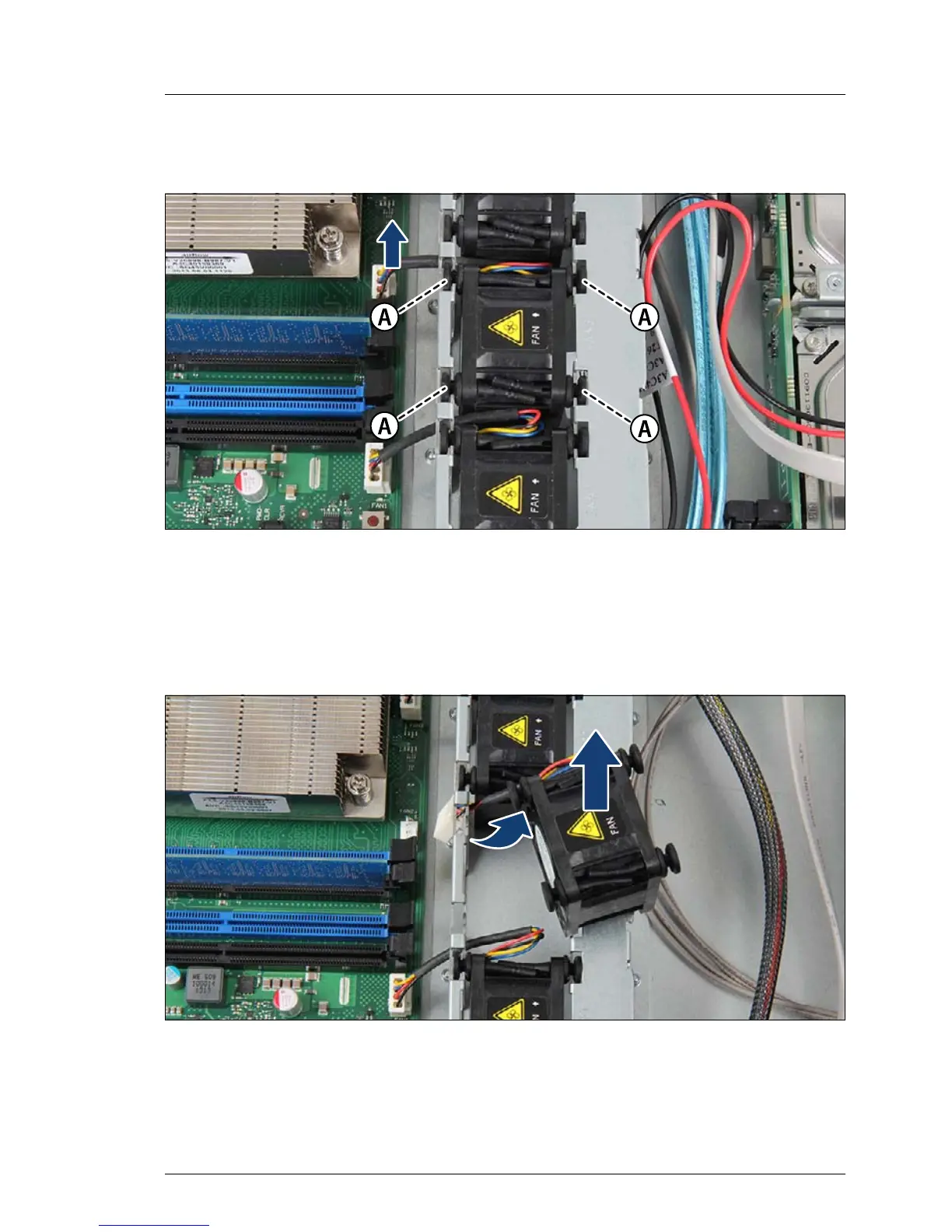

Figure 83: Disconnecting the fan cable
Ê Disconnect the fan cable of the fan module from the system board.
Ê Lift off the fan module upward about 2 cm.
To do this, press up the four rubber pins (A).
Figure 84: Removing the fan module
Ê Push the fan cable through the opening of the fan cage.
Ê Take out the fan module.
