16.2.3 Indicators on the accessible drives/components
Optical drive activity indicator

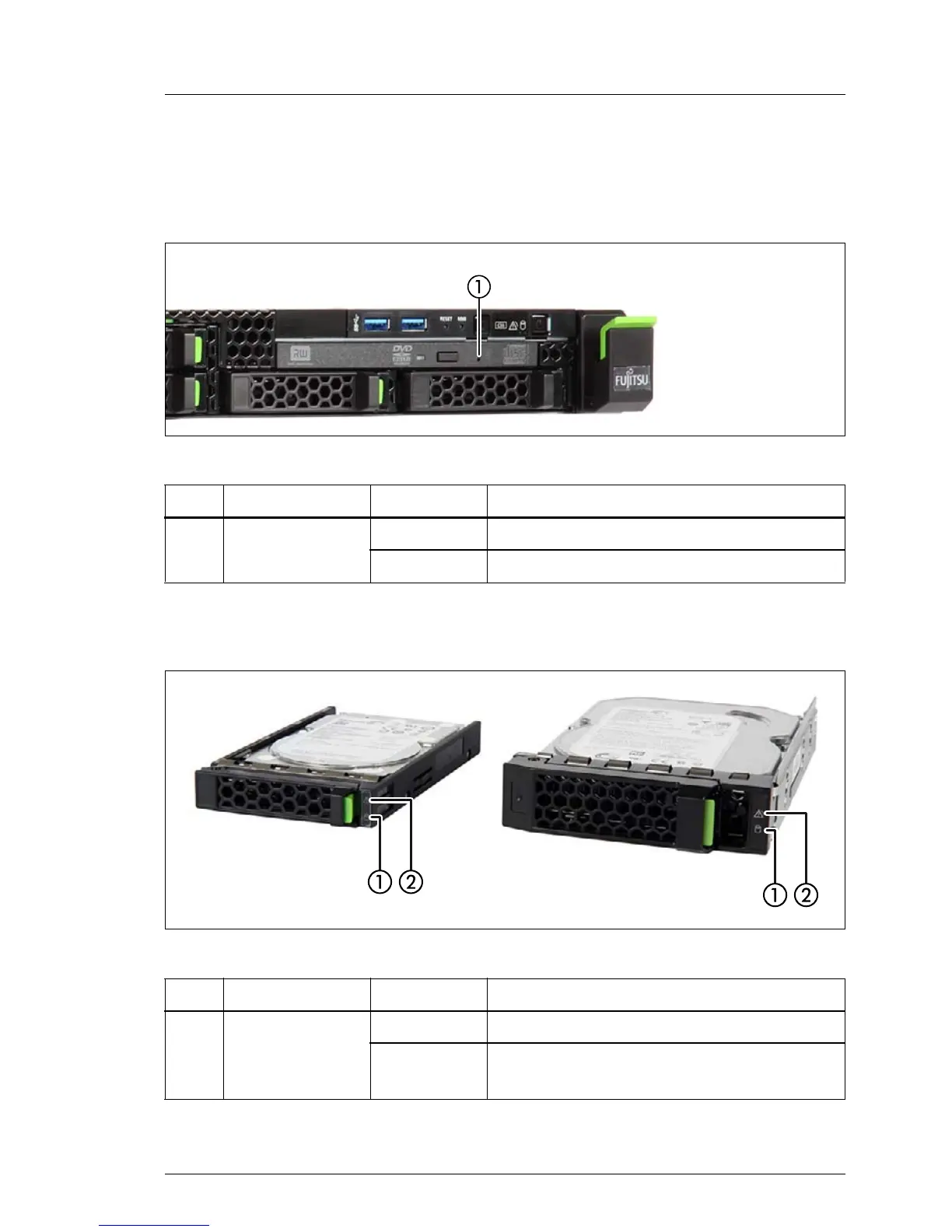

Figure 224: Indicator on the optical drive
Indicators on the hot-plug HDD module
Figure 225: Indicators on the hot-plug HDD module
Pos. Indicator Status Description
1
Activity
indicator
off optical drive inactive
green on storage medium is being accessed
Pos. Indicator Status Description
1 HDD BUSY
off HDD inactive
green on
HDD in active phase (drive active, drive
being accessed)
