250 Upgrade and Maintenance Manual
RX100 S8
System board and components
V CAUTION!
UFM contains customer information (e.g. IP address, License etc.). After
replacing the UFM, you must pass the defective UFM to the customer,
and ask for disposal. If the disposal of the defective UFM is requested by
the customer, you break it according to the following procedure, and
dispose it.

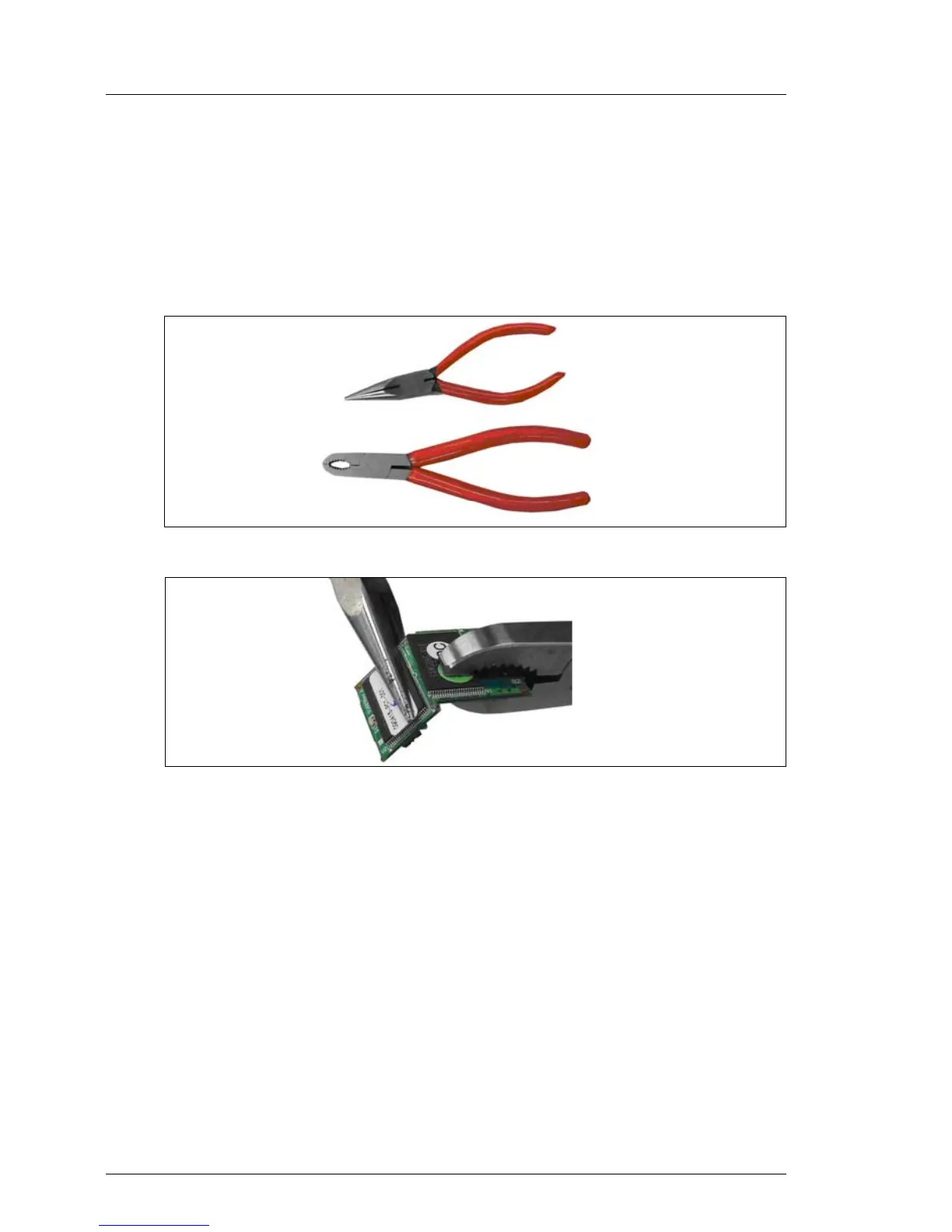

Figure 189: Tools for breaking the UFM
Figure 190: UFM breaking method
Ê Use a long nose pliers and a combination pliers to break the UFM in
half as shown in the figure.
14.3.2.3 Concluding steps
Ê Install the riser module 3 as described in section "Installing a riser module"
on page 60.
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Enabling SVOM boot watchdog functionality" on page 78
