218 Upgrade and Maintenance Manual
RX100 S8
Processor
11.2.6 Installing the heat sink

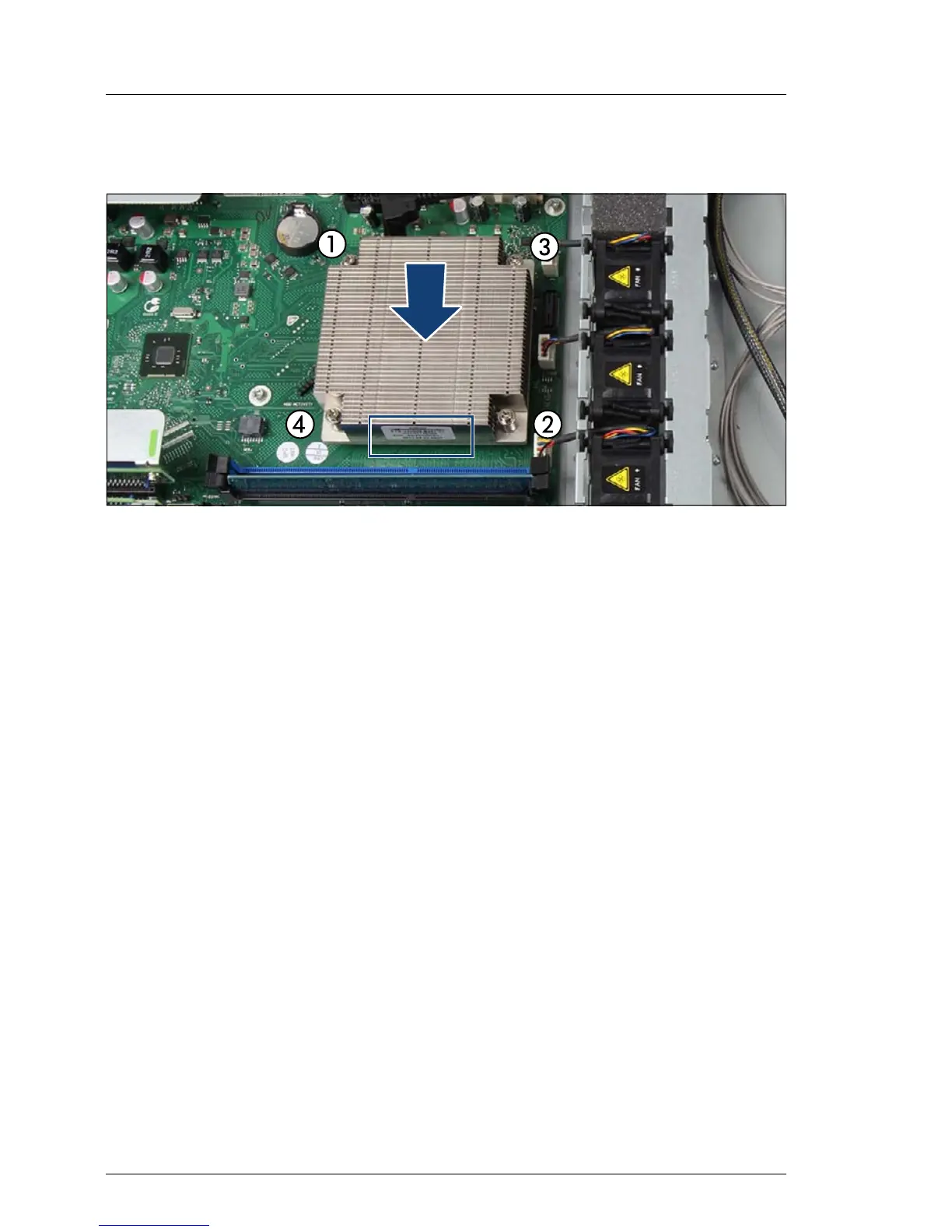

Figure 152: Installing the heat sink
Ê Align the heat sink and fit it on the processor socket.
Ê Position the screws in the holes carefully, making sure they are upright.
Ê Fasten it in a crossover pattern with four screws according to the numbering
(torque 6.0 Nm, the description of this torque value doesn't apply to the
Japanese market). Notice the position of the air flow label.
11.2.7 Concluding steps
Ê "Installing a riser module" on page 60
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Updating or recovering the system board BIOS and iRMC" on page 70
Ê "Enabling SVOM boot watchdog functionality" on page 78
Ê "Switching on the server" on page 57
Ê "Enabling BitLocker functionality" on page 84
