208 Upgrade and Maintenance Manual
RX100 S8
Main memory

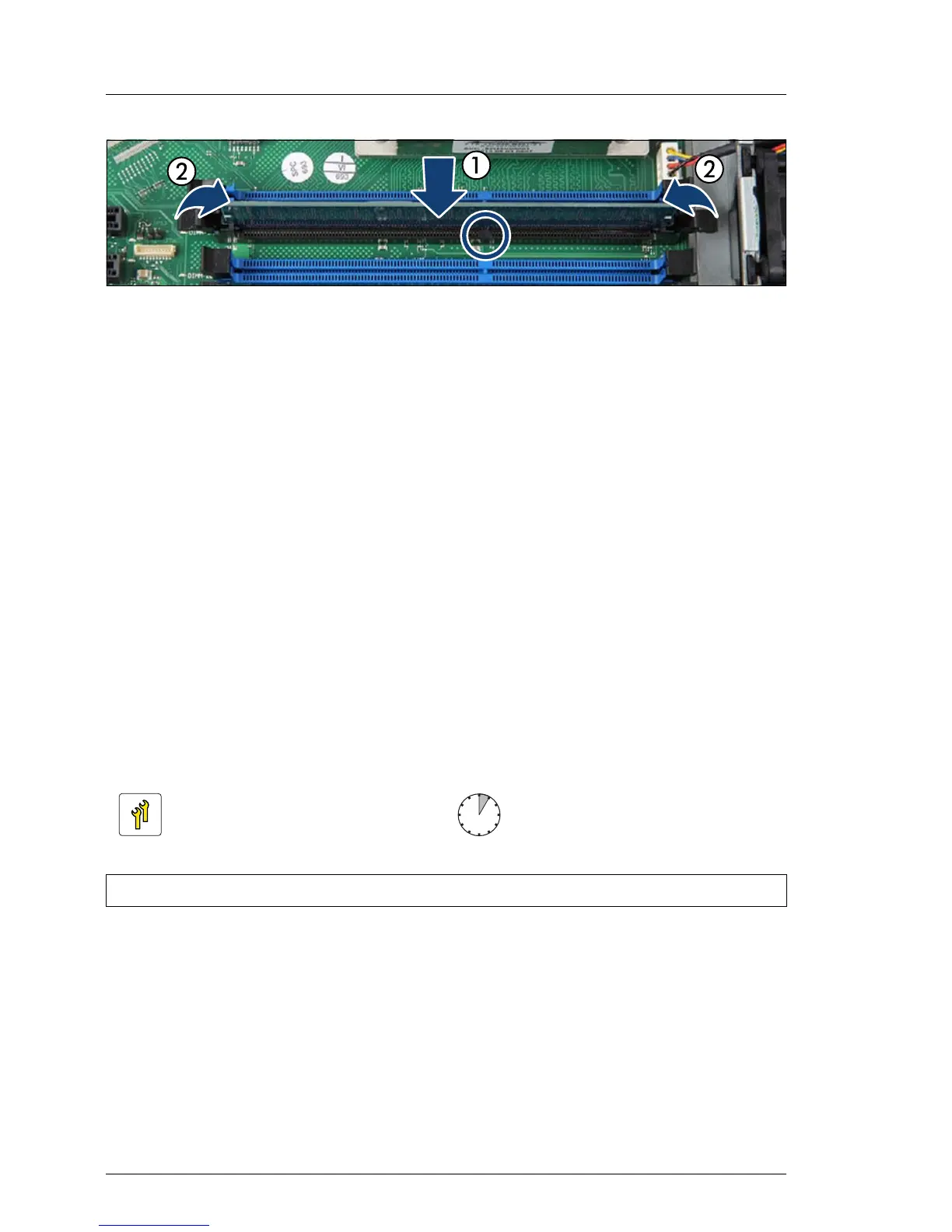

Figure 142: Installing a memory module
Ê Carefully press the memory module into the memory slot (1) until the
securing clips on both sides of it engage (2). Notice the coding (see circle).
10.2.4 Concluding steps
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Updating or recovering the system board BIOS and iRMC" on page 70
Ê "Enabling SVOM boot watchdog functionality" on page 78
Ê "Switching on the server" on page 57
Ê "Enabling BitLocker functionality" on page 84
10.3 Removing a memory module
10.3.1 Preliminary steps
Ê "Disabling BitLocker functionality" on page 63
Ê "Shutting down the server" on page 45
Ê "Disconnecting the server from the mains" on page 46
Ê "Getting access to the component" on page 47
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
