256 Upgrade and Maintenance Manual
RX100 S8
System board and components

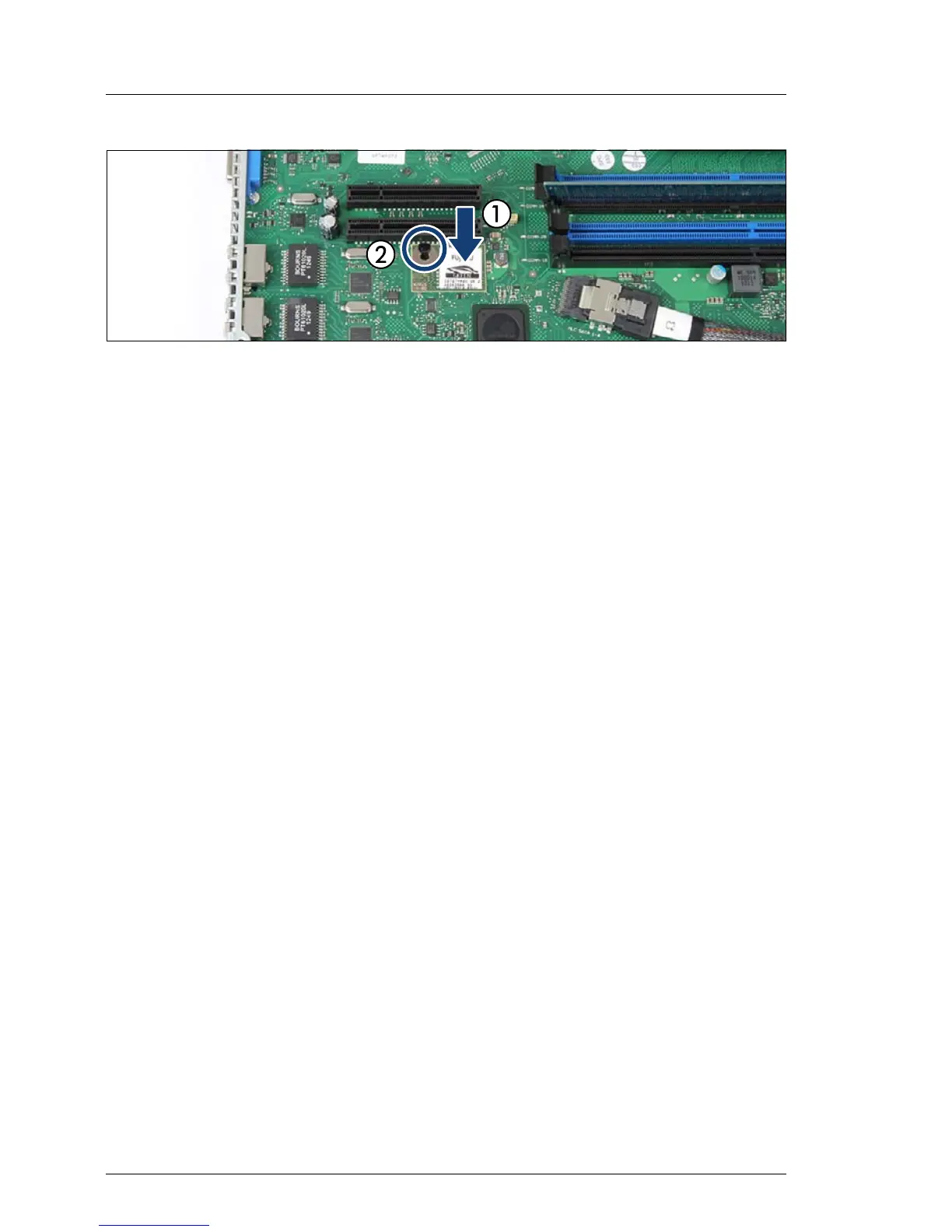

Figure 197: Installing the TPM
Ê Connect the TPM to the system board (1).
Ê Fasten the TPM with the special screw for the TPM using the TPM bit insert
or TPM module fixing tool (Japanese market) (2).
V CAUTION!
Do not fasten the screw too firmly. Stop it by extent where the head
of the screw lightly touches the TPM (torque value of 0.6 Nm).
14.4.1.3 Concluding steps
Ê Install the riser module 1 as described in section "Installing a riser module"
on page 60.
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57
Ê "Enabling BitLocker functionality" on page 84
Ê Enable TPM in the system board BIOS. Proceed as follows:
Ê Switch on or restart your server.
Ê As soon as the startup screen appears, press the [F2] function key to
enter the BIOS.
Ê Select the Advanced menu.
Ê Select the Trusted Computing submenu.
Ê Set the TPM Support and TPM State settings to Enabled.
Ê Under Pending TPM operation, select the desired TPM operation mode.
