194 Upgrade and Maintenance Manual
RX100 S8
Expansion cards and backup units
9.5.2.6 Connecting the FBU adapter cable to the TFM

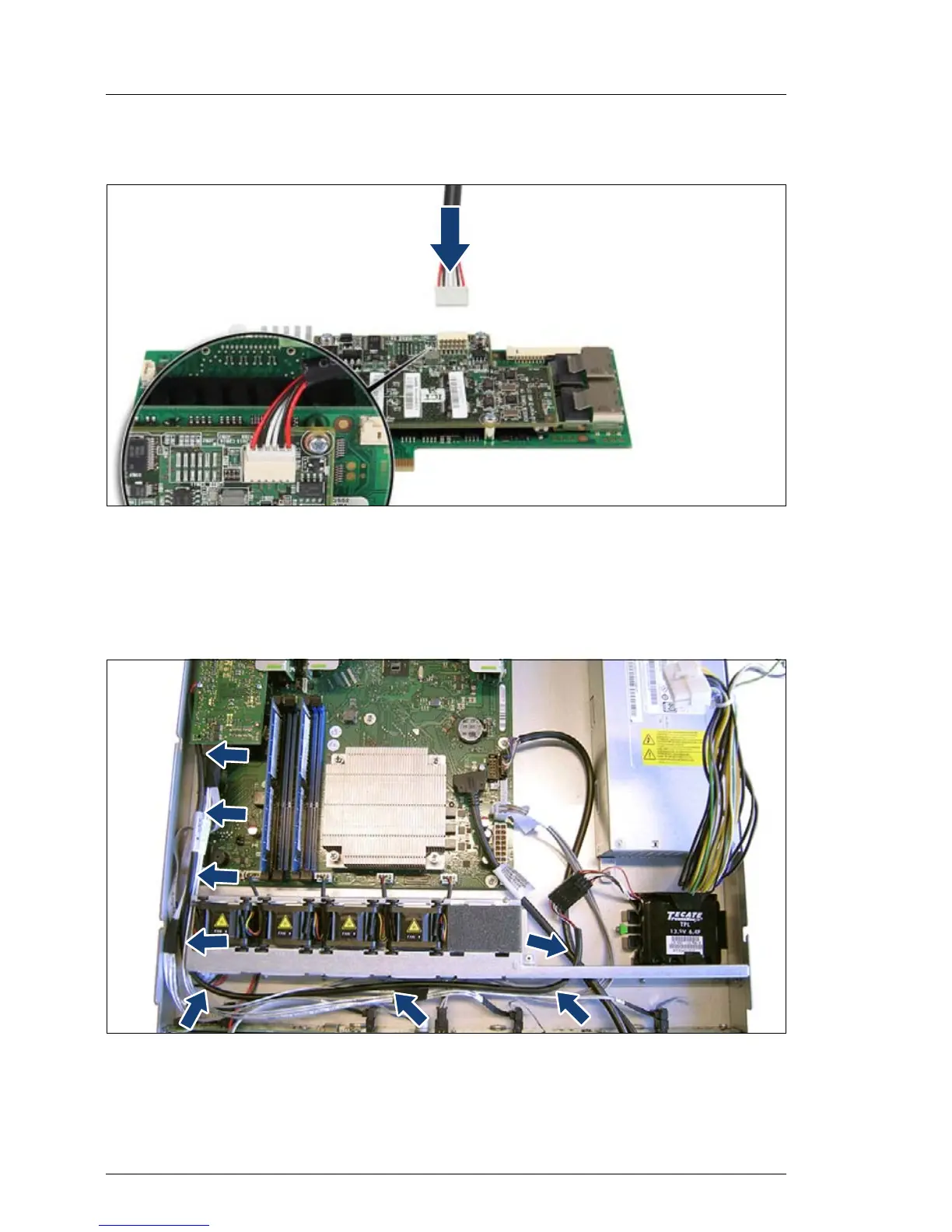

Figure 132: Connecting the FBU adapter cable to the TFM
Ê Connect the FBU adapter cable to the TFM.
Ê Install the RAID controller with the TFM as described in section "Installing an
expansion card" on page 171.
Figure 133: Routing the FBU cable
Ê Route the FBU cable as shown in the figure.
