RX100 S8
Upgrade and Maintenance Manual 237
Front panel

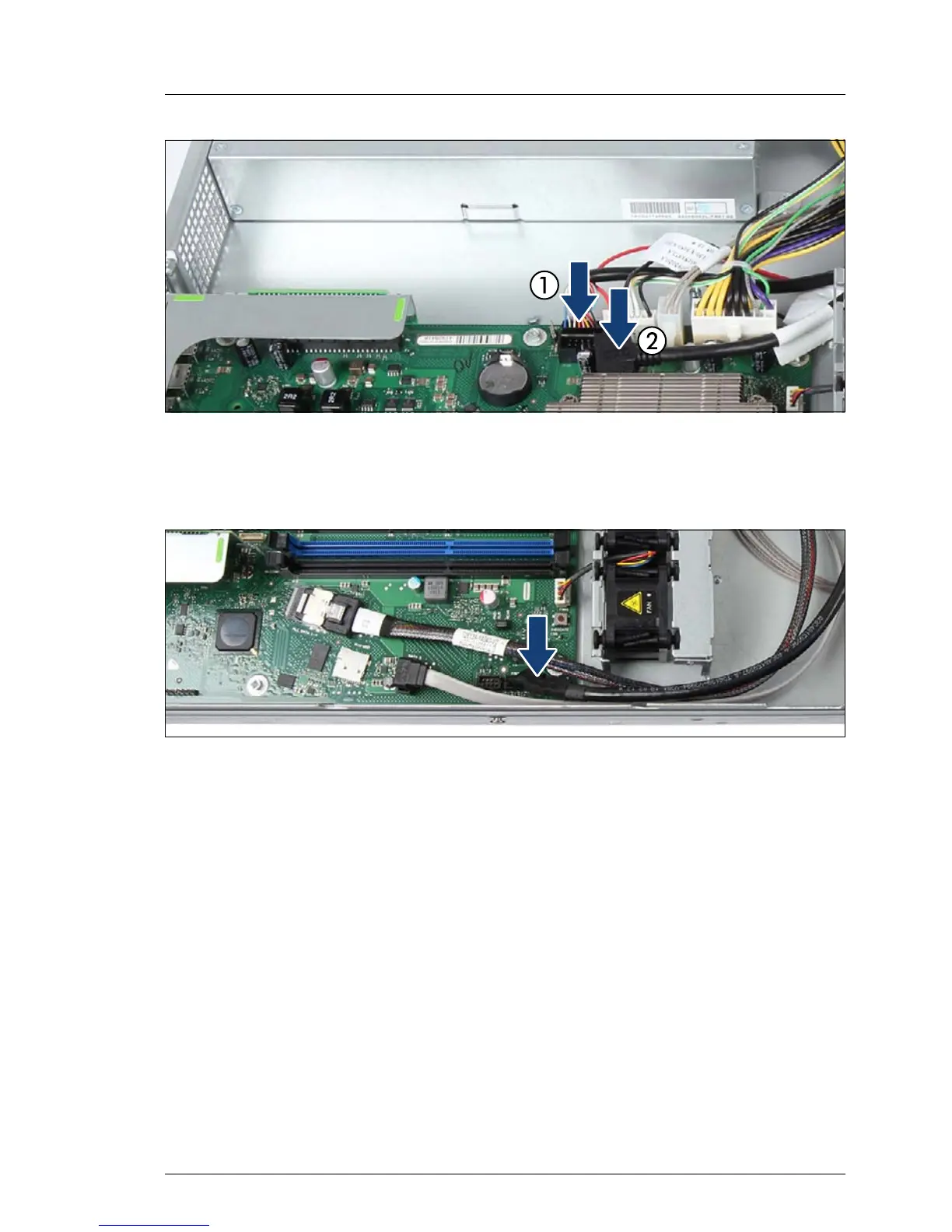

Figure 174: Connecting the cables (A)
Ê Connect the front panel cable (1) and the front USB cable (2) to the system
board
Figure 175: Connecting the cables (B)
Ê If applicable, connect the front VGA cable to the system board.
13.2.4 Concluding steps
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Enabling SVOM boot watchdog functionality" on page 78
Ê "Using the Chassis ID Prom Tool" on page 87
Ê "Switching on the server" on page 57
Ê "Verifying system information backup / restore" on page 73
Ê "Enabling BitLocker functionality" on page 84
