236 Upgrade and Maintenance Manual
RX100 S8
Front panel

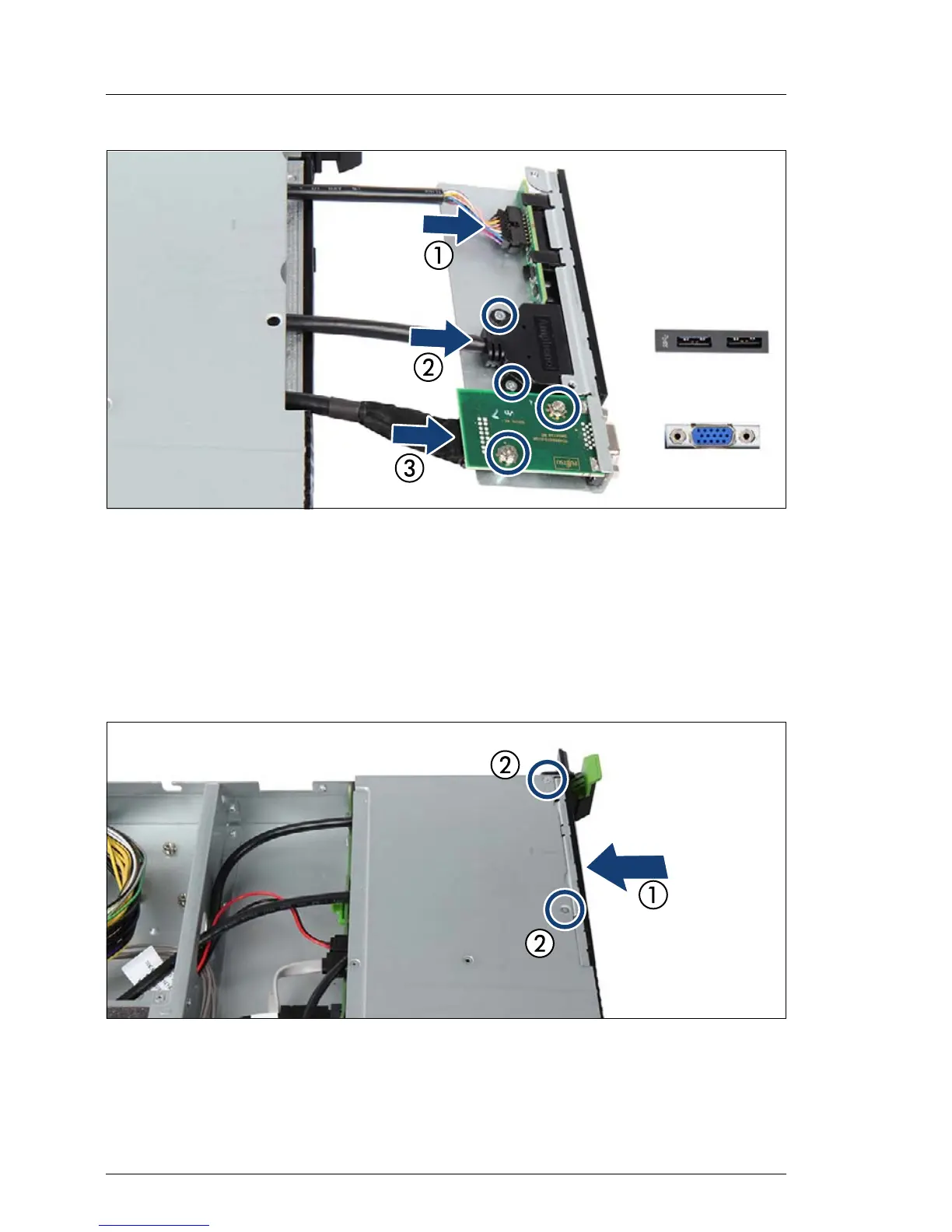

Figure 172: Connecting cables to the front panel module
Ê Connect the front panel cable (1).
Ê Push the front USB connector in the corresponding recess and fasten the
front USB cable with two screws (2).
Ê If applicable, push the front VGA connector in the corresponding recess and
fasten the front VGA cable with two screws (3).
Figure 173: Installing the front panel module
Ê Push the front panel module in its bay (1).
Ê Fasten the front panel module with two screws (2).
