172 Upgrade and Maintenance Manual
RX100 S8
Expansion cards and backup units
V CAUTION!
Keep the slot cover for future use. If the expansion card is removed and
not replaced with a new one, the slot cover must be reinstalled due to
cooling, to comply with applicable EMC regulations and to protect
against fire.
9.4.1.3 Installing the expansion card
Ê Please read the documentation supplied with the expansion card.
Ê If applicable, install a slot bracket to the expansion card as described in
section "Installing a slot bracket" on page 159.

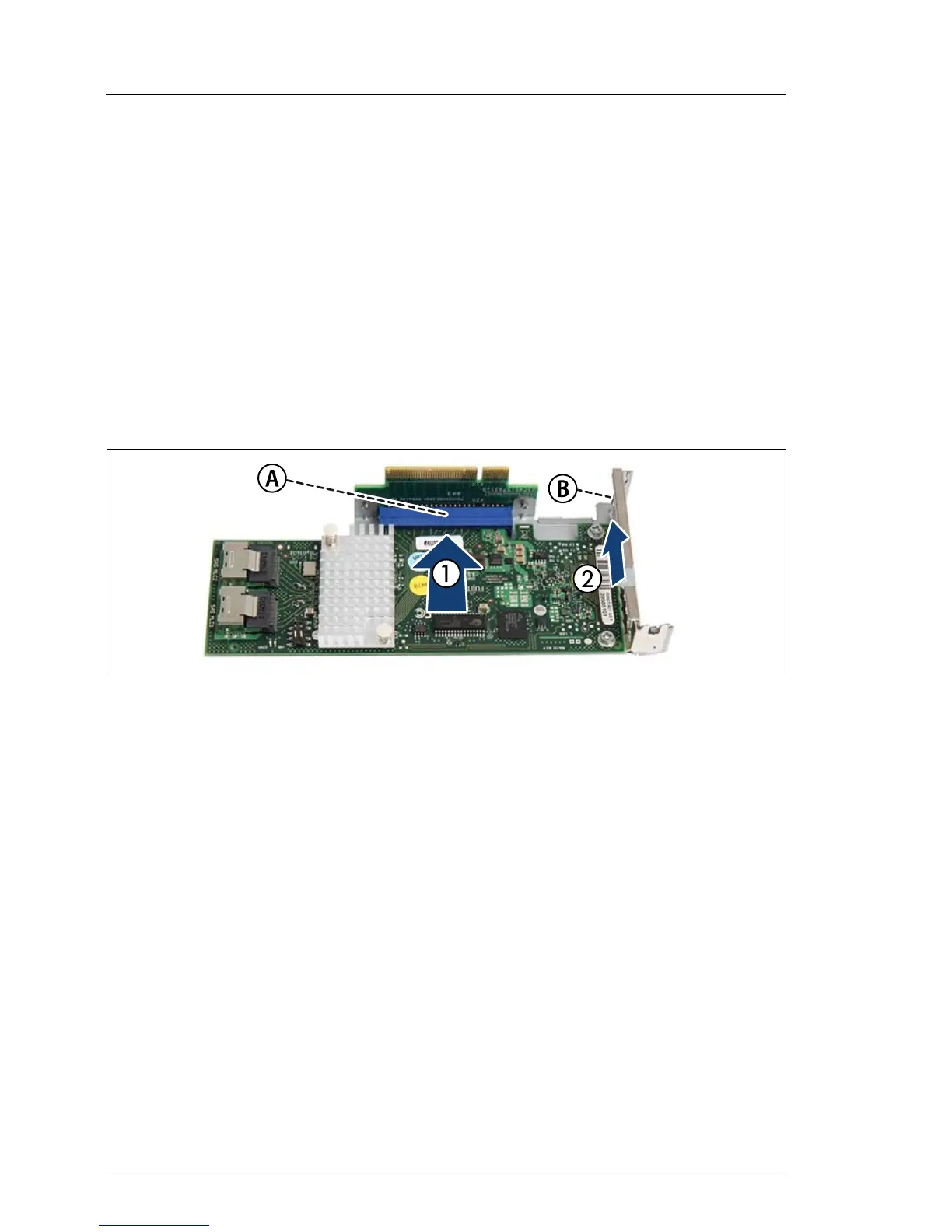

Figure 108: Installing an expansion card - example riser module 1
Ê Carefully press the expansion card into the riser card slot (A), until it clicks
into place (1). Make sure that the lug on the slot cover (B) clicks into place
in the corresponding hole (2).
9.4.1.4 Concluding steps
Ê Install the corresponding riser module as described in section "Installing a
riser module" on page 60.
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Updating RAID controller firmware" on page 74
Ê "Enabling Option ROM scan" on page 75
Ê "Enabling SVOM boot watchdog functionality" on page 78
Ê "Switching on the server" on page 57
