RX100 S8
Upgrade and Maintenance Manual 57
Basic hardware procedures

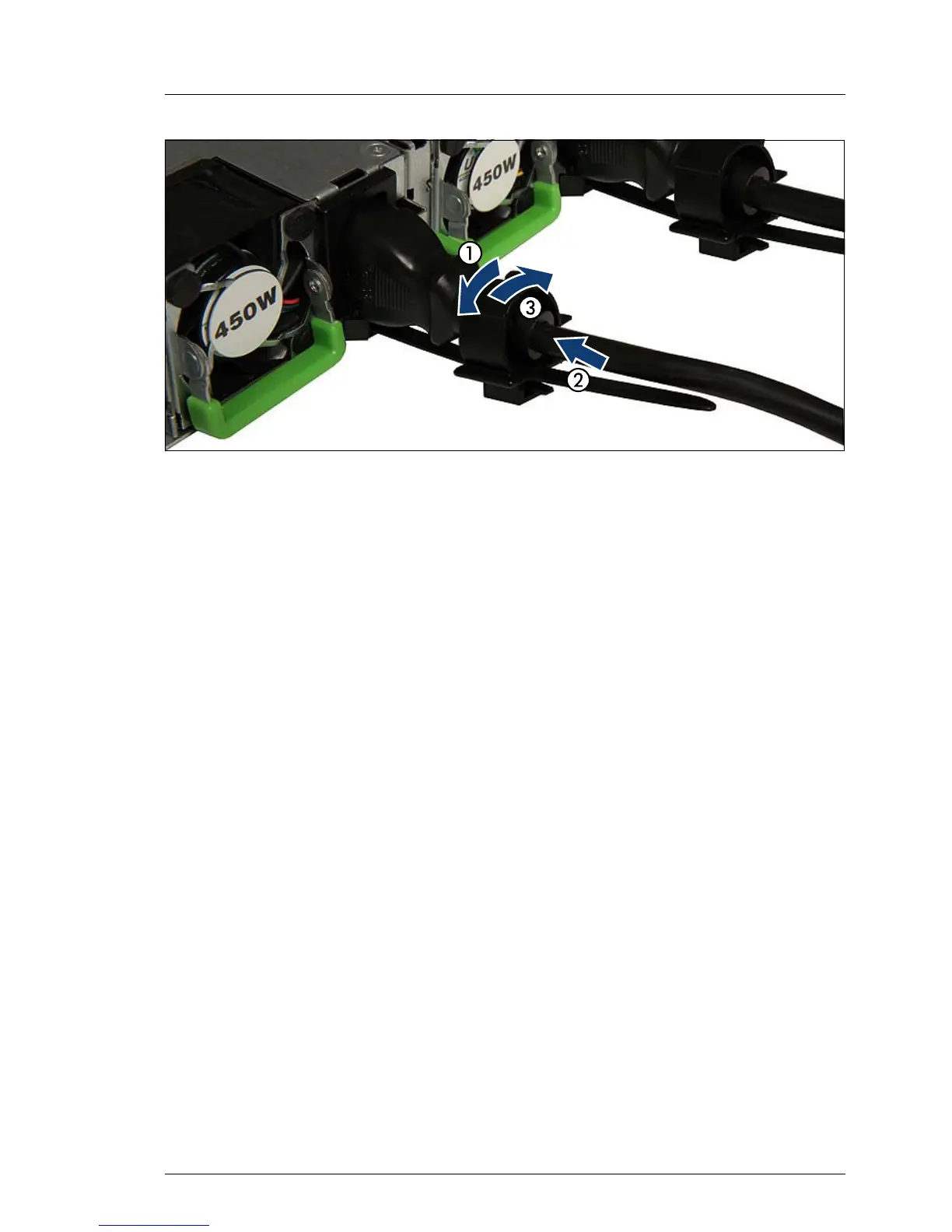

Figure 11: Example: Locking the cable clamp of a power supply unit
Ê Pull the cable clamp up (1).
Ê Thread the power cord through the cable clamp (2).
Ê Press the cable clamp down until it engages to secure the cable (3).
4.7 Switching on the server
V CAUTION!
●
Before switching on the server, make sure the top cover is closed. In
order to comply with applicable EMC regulations (regulations on
electromagnetic compatibility) and satisfy cooling requirements, the
server must not run while the top cover is removed.
●
For further safety information, please refer to chapter "Important
information" on page 31.
Ê Press the On/Off button to start up the server.
Ê Ensure that the power-on indicator above the On / Off button is lit green.
Ê Perform the required procedures described in the concluding steps of each
upgrade or maintenance task.
