RX100 S8
Upgrade and Maintenance Manual 199
Expansion cards and backup units
9.5.4.4 Removing the FBU from the holder

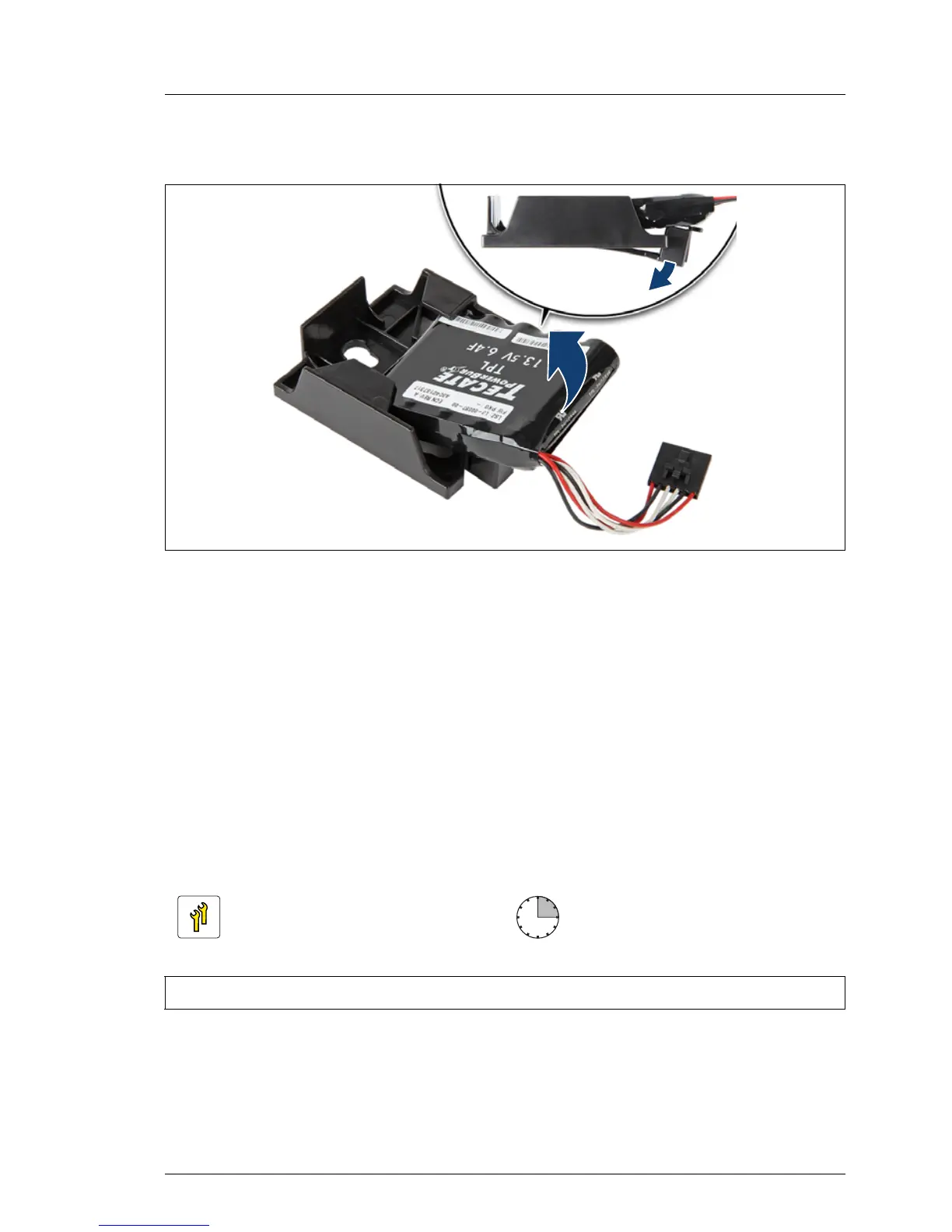

Figure 138: Removing the FBU from the holder
Ê Pull the FBU at a slight angle out of the holder.
9.5.4.5 Concluding steps
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57
9.5.5 Replacing a BBU
V CAUTION!
●
Dispose of used battery properly. Keep away from children.
Upgrade and Repair Unit
(URU)
Hardware: 15 minutes
Tools: tool-less
