152 Upgrade and Maintenance Manual RX100 S8
Fans
8.2.3 Installing the new fan module

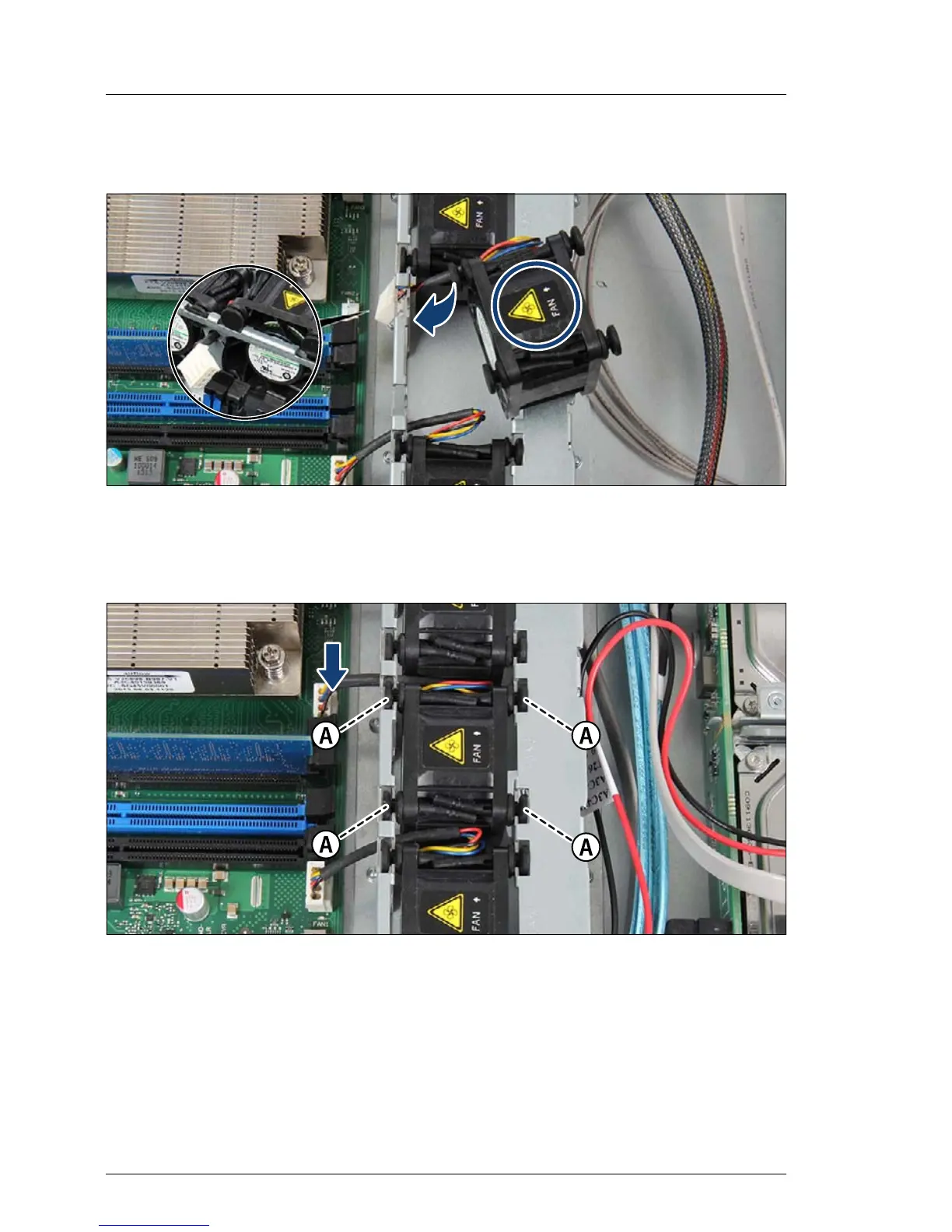

Figure 85: Installing the fan module
Ê Thread the fan cable through the opening of the fan cage (see close-up) and
insert the fan module. Notice the direction of the fan label (see circle).
Figure 86: Connecting the fan cable
Ê Press down the four rubber pins until they engage (A).
Ê Connect the fan cable to the system board.
