196 Upgrade and Maintenance Manual
RX100 S8
Expansion cards and backup units
9.5.3.2 Removing the BBU with the holder

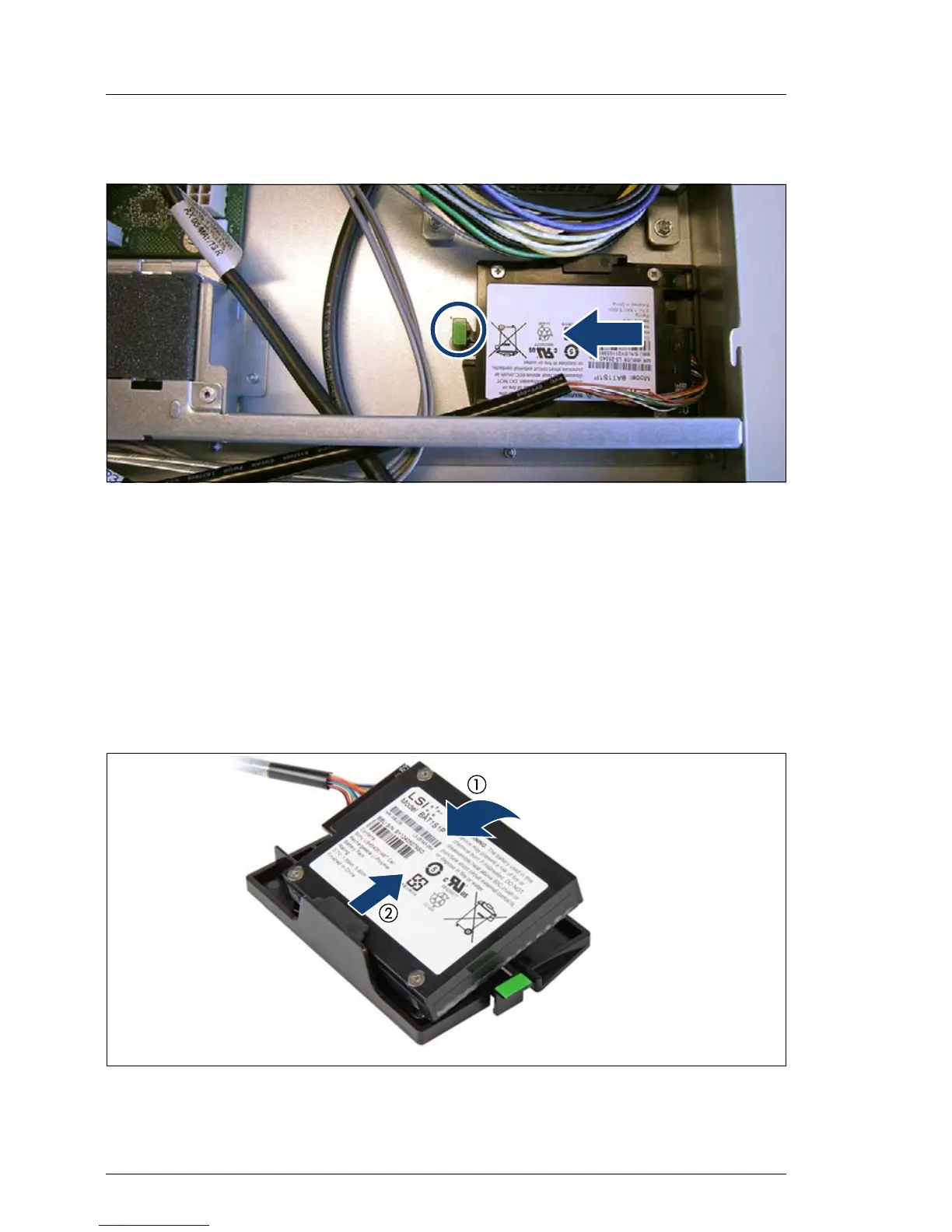

Figure 134: Removing the BBU with the holder
Ê Lift up the green locking handle on the holder (see circle) while sliding the
holder in direction of the arrow as far as it will go.
I After that, the shoulder screw caps on the chassis floor will rest in the
wide ends of the keyhole slots on the holder.
Ê Lift the holder out of the chassis.
9.5.3.3 Removing the BBU from the holder
Figure 135: Removing the BBU from the holder
Ê Fold up the BBU (1) and at a slight angle remove it from the holder (2).
