RX100 S8
Upgrade and Maintenance Manual 135
Hard disk drives / solid state drives

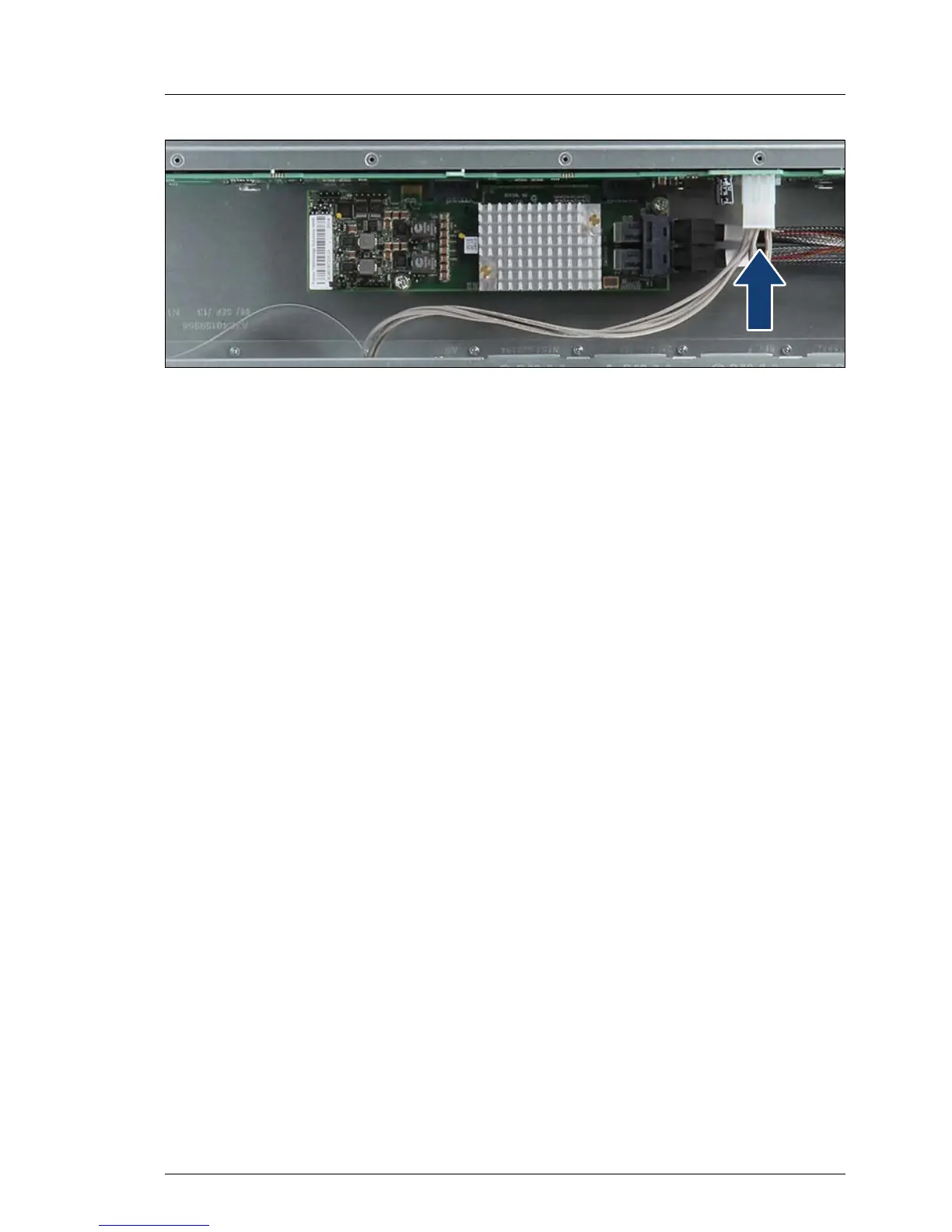

Figure 71: Connecting power cable to the HDD backplane
Ê Connect the power cable to the HDD backplane.
7.2.9.6 Concluding steps
Ê Insert all HDD/SSD modules, see section "Installing 2.5-inch HDD/SSD
modules" on page 118.
I Make sure that you reinstall the HDD/SSD module in the bay it was
located before the HDD backplane replacement.
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57
