Fujitsu PRIMERGY RX100 S8 - Connecting the FBU Adapter Cable to the FBU; Installing the FBU with the Holder

RX100 S8 Upgrade and Maintenance Manual 193
Expansion cards and backup units

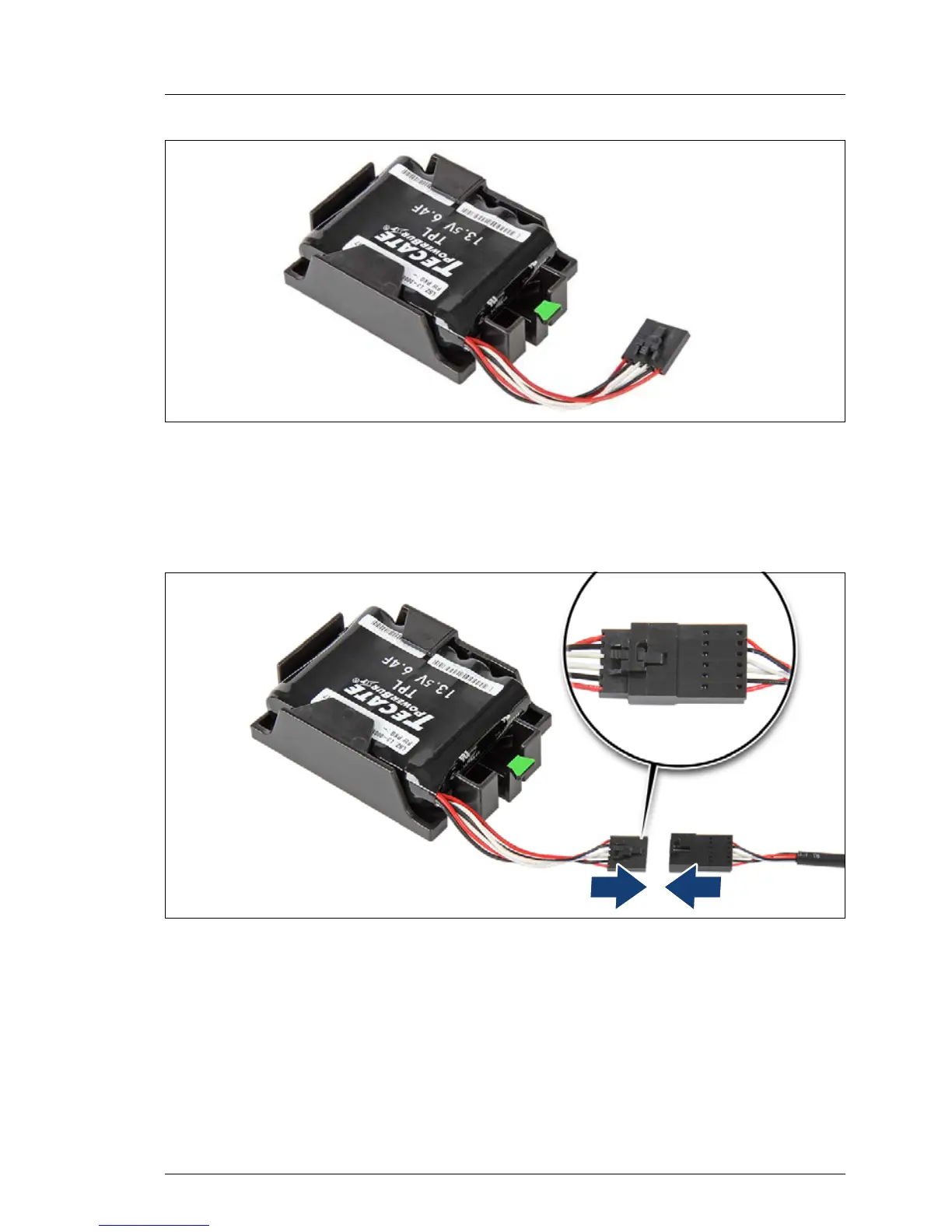

Figure 130: Installing the FBU in the holder (B)
Ê Ensure that the FBU is properly seated in the holder as shown.
9.5.2.4 Connecting the FBU adapter cable to the FBU
Figure 131: Connecting the FBU adapter cable to the FBU
Ê Connect the cable end on the FBU to the FBU adapter cable as shown.
9.5.2.5 Installing the FBU with the holder
Ê Install the FBU with the holder as described in section "Installing the BBU
with the holder" on page 188.
