Fujitsu PRIMERGY RX100 S8 Upgrade And Maintenance Manual

RX100 S8 Upgrade and Maintenance Manual 95
Power supply
6.2.1.3 Installing the new standard power supply unit

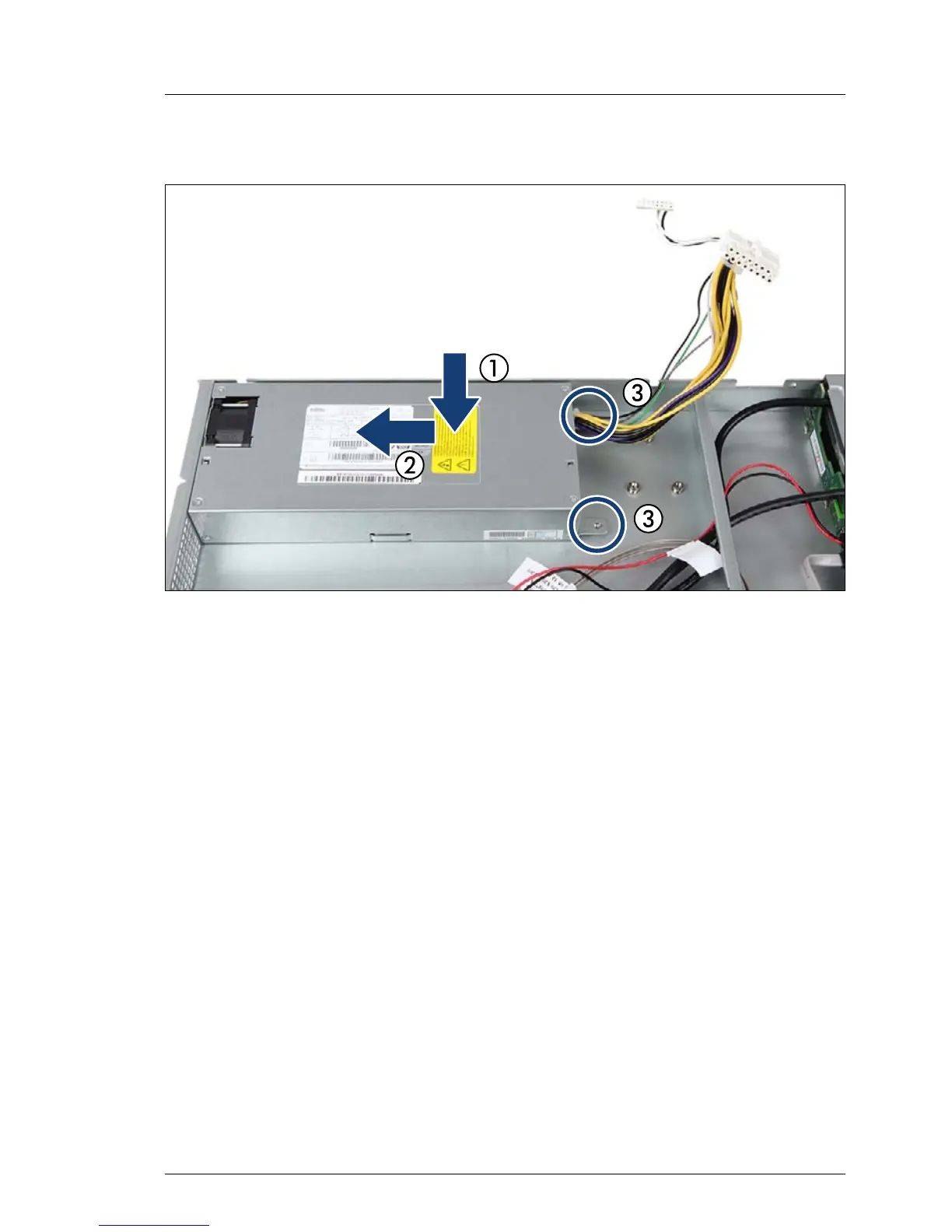

Figure 24: Inserting the standard power supply unit
Ê Insert the power supply unit into the bay (1).
Ê Push the power supply unit toward the adapter plate (2).
Ê Fasten the power supply unit with two screws in the chassis (3).
Ê Attach the power supply unit with two screws to the adapter plate (see figure
22).

Fujitsu PRIMERGY RX100 S8 Specifications

General

CPU Family	Intel Xeon
Memory Type	DDR3
Memory Slots	4
Maximum Memory	32 GB
Network Interface	Gigabit Ethernet
Processor	Intel Xeon E3-1200 v2
Storage	SAS, SATA
RAID Support	RAID 0, 1, 10
Drive Bays	4 x 3.5" or 8 x 2.5"
