226 Upgrade and Maintenance Manual
RX100 S8
Optical disk drive

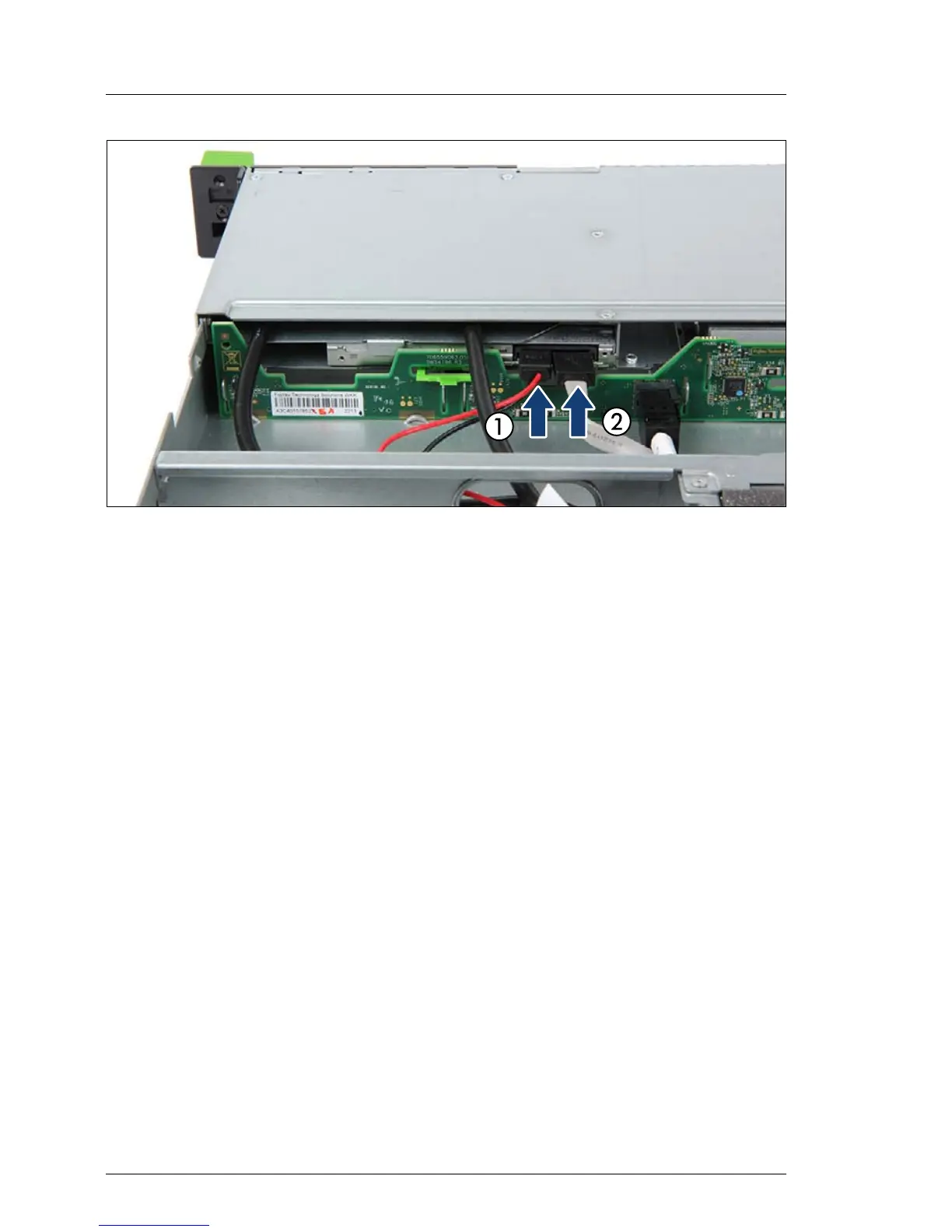

Figure 161: Connecting the cables to the ODD
Ê Connect the ODD power cable (1) to the ODD.
Ê Connect the SATA cable (2) to the ODD.
I The ODD power cable and the SATA cable are preinstalled.
12.2.4 Concluding steps
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57
Ê "Enabling BitLocker functionality" on page 84
