192 Upgrade and Maintenance Manual RX100 S8
Expansion cards and backup units

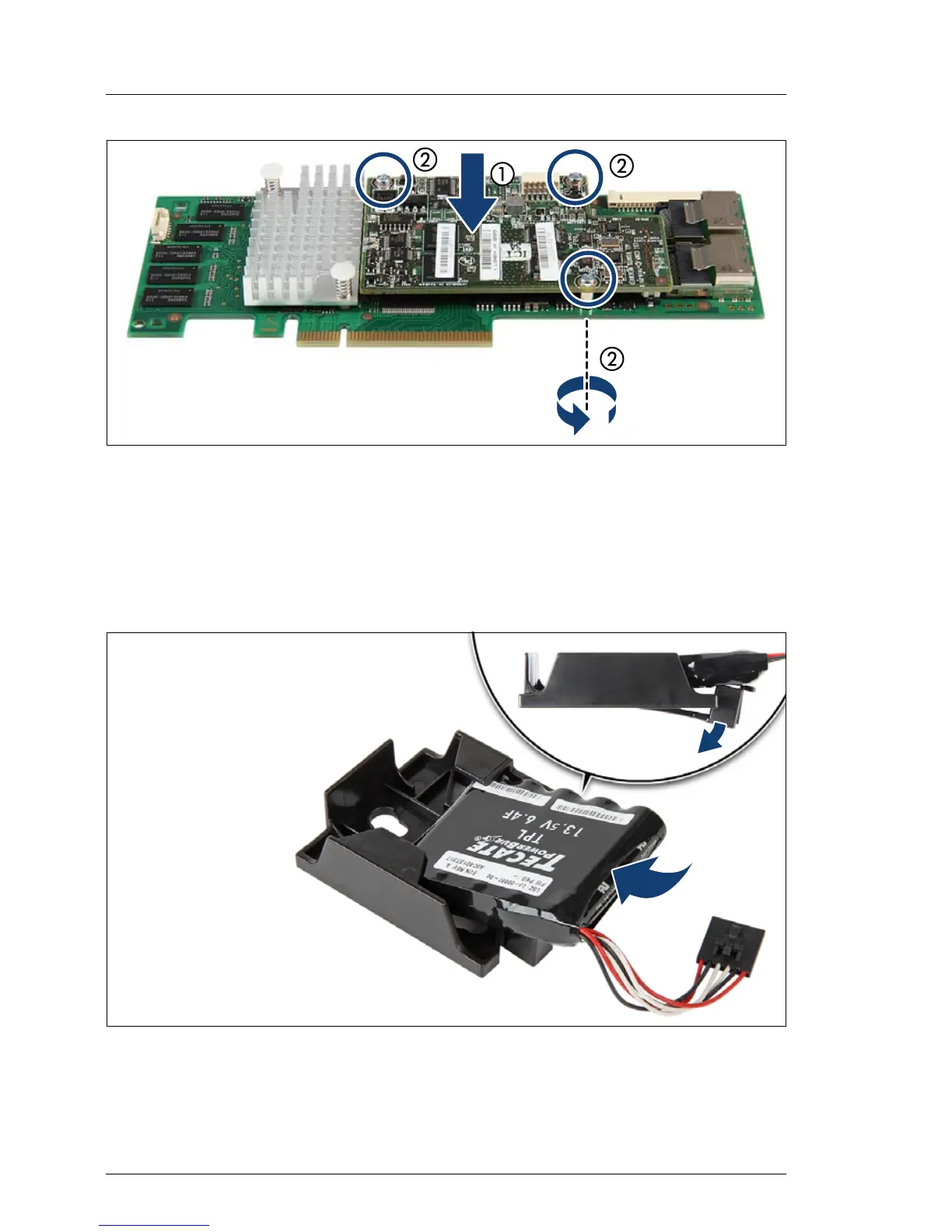

Figure 128: Installing TFM
Ê Fit the spacer bolts of the TFM on the RAID controller (1).
Ê Secure the TFM on the RAID controller with the three screws (2).
9.5.2.3 Installing the FBU in the holder
Figure 129: Installing the FBU in the holder (A)
Ê At a slight angle, fit the FBU under both retaining brackets of the holder.
Ê Push in the FBU until it locks in place.
