RX100 S8
Upgrade and Maintenance Manual 139
Hard disk drives / solid state drives
7.3 3.5-inch HDD configurations
7.3.1 Equipping the 3.5-inch HDD bays
If only one HDD module is installed, the HDD module will be installed in the
left bay (seen from the front) and dummy modules must be installed in the
free bays.
Installing different capacities, install the biggest capacity first.
Installing different rotating speed, install the fastest rotating speed first.
Mounting order

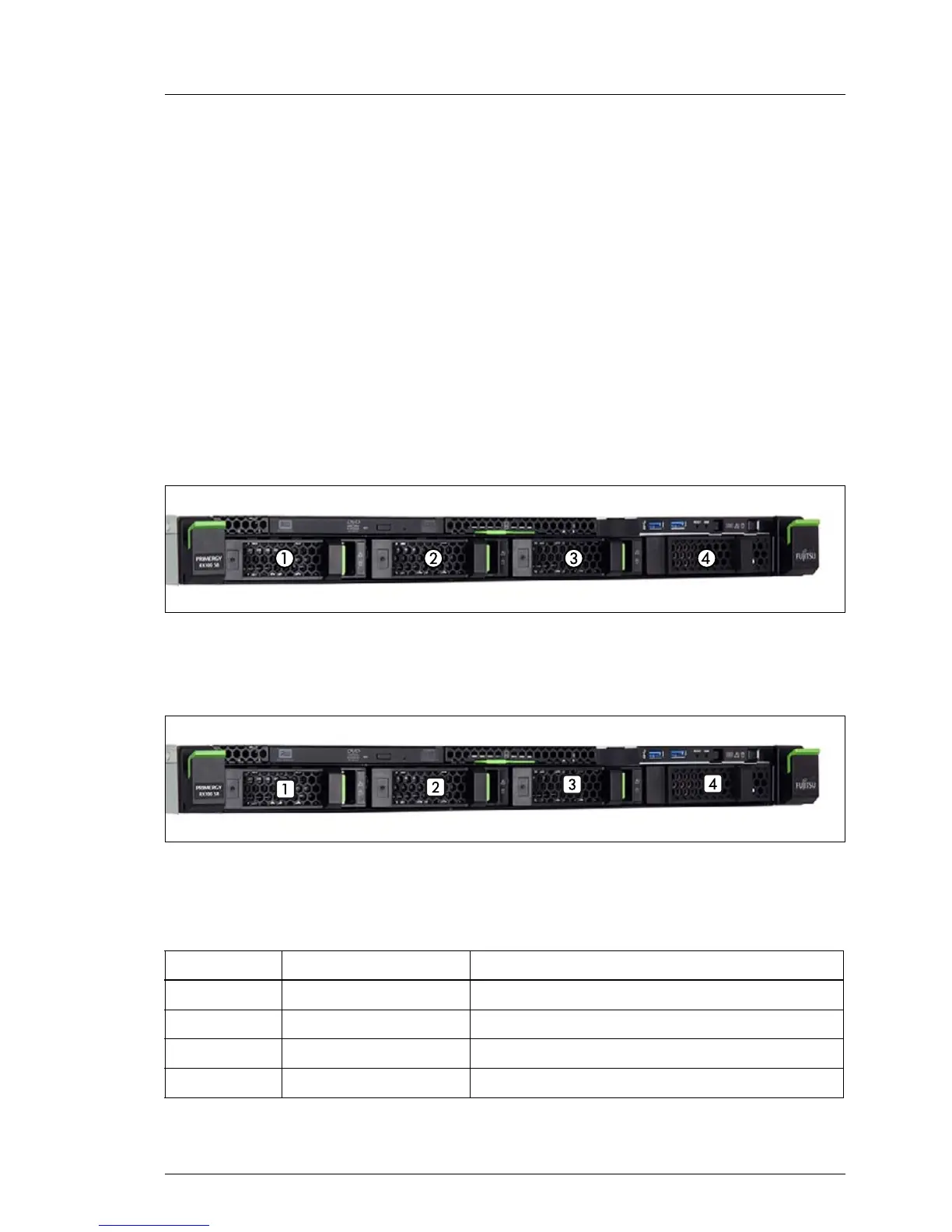

Figure 73: Mounting order with up to four 3.5-inch HDDs
HDD naming scheme
Figure 74: Naming scheme with up to four 3.5-inch HDDs
I The HDD numbering as listed in the ServerView RAID Manager differs
from the HDD mounting order:
Position Logical drive number ServerView RAID Manager display name
[1] 0 HDD vendor name (0)
[2] 1 HDD vendor name (1)
[3] 2 HDD vendor name (2)
[4] 3 HDD vendor name (3)
