RX100 S8
Upgrade and Maintenance Manual
51
Basic hardware procedures
4.4.3
Removing the top cover

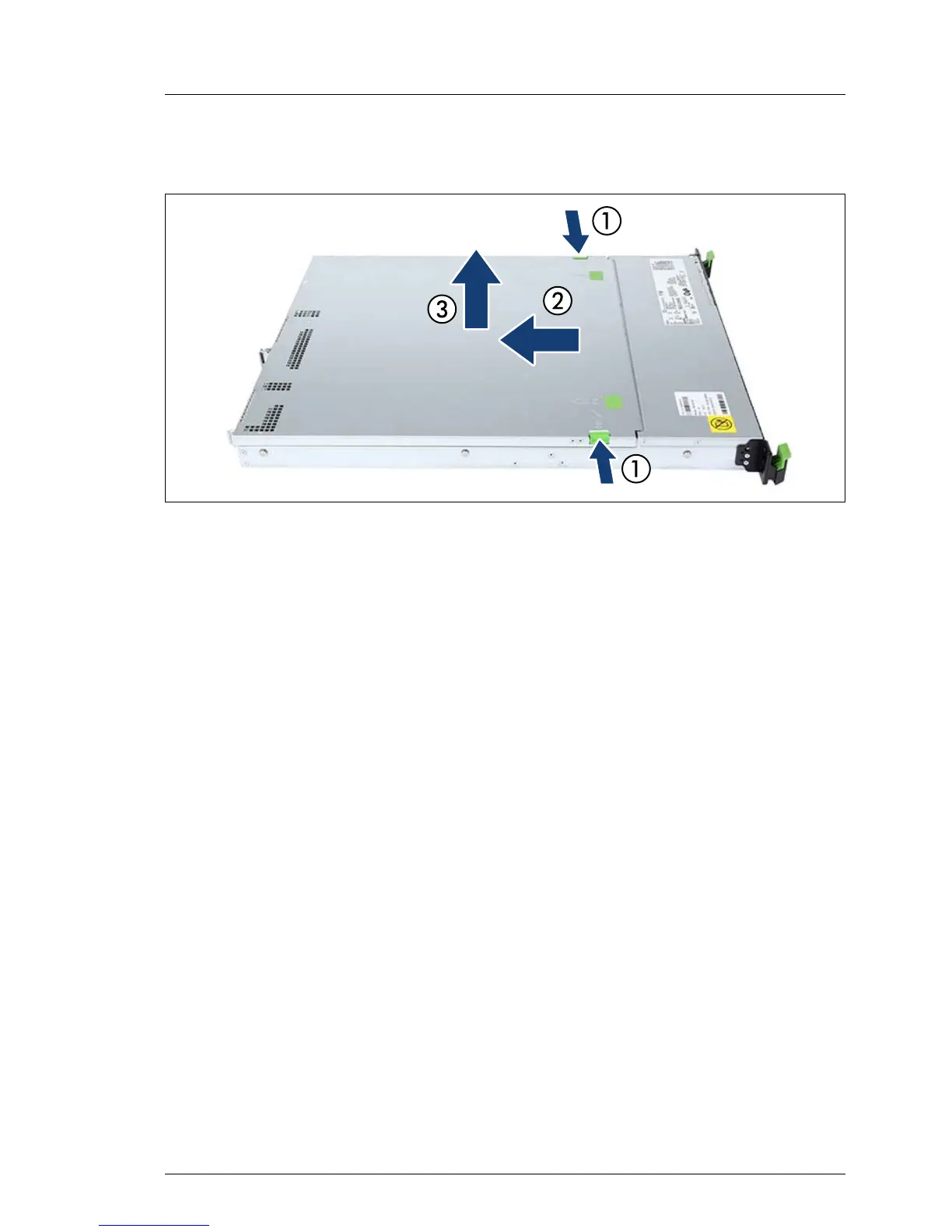

Figure 6: Removing the t
op cover
Ê
Push gre
en touch points inside (1).
Ê
Push the top cover as far as it will go in the direction of the arrow
(2).
Ê
Lif
t off the top c
over upward
(3).
