222 Upgrade and Maintenance Manual
RX100 S8
Optical disk drive
12.1 Basic information
You can install one 5.25-inch slimline optical disk drive (ODD). The installation
bay depends on the 2.5-inch or 3.5-inch HDD configuration.
The proceeding for installing/removing is identic except the routing of the cables
and the depending ODD power connector on the system board (see section
"Onboard connectors" on page 284).
3.5-inch HDD configuration

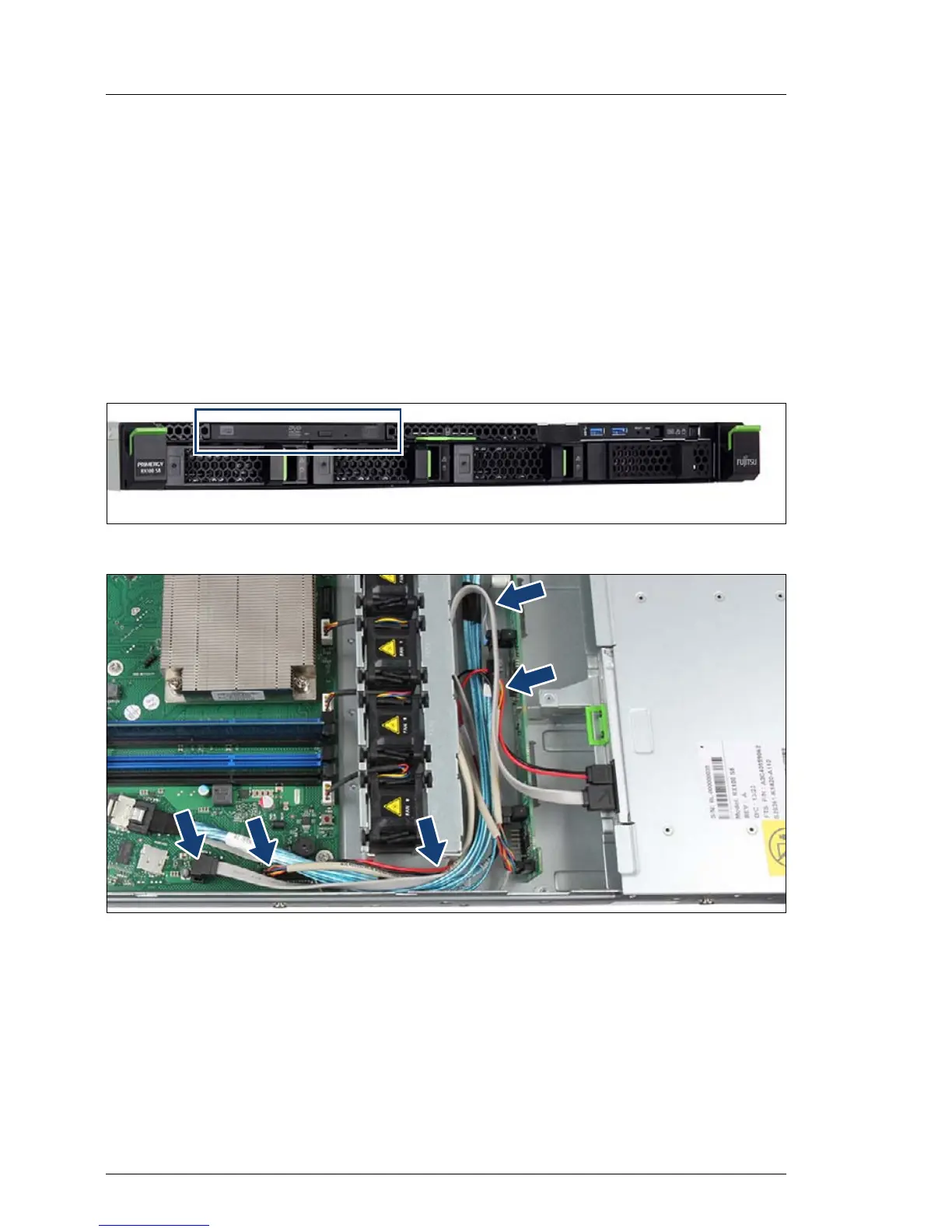

Figure 153: Position of the ODD bay - example 3.5-inch HDD configuration
Figure 154: Routing ODD cables - example 3.5-inch HDD configuration
