RX100 S8
Upgrade and Maintenance Manual 27
Before you start
2.3 Tools you need at hand
When preparing the maintenance task, ensure that all required tools are
available according to the overview below. You will find a list of required tools at
the beginning of each procedure.
Screw driver/
bit insert
Screw Usage Type
Phillips
PH2 / (+) No. 2
Slot brackets
M3 x 3.5 mm
(silver)
C26192-Y10-C151
Phillips
PH2 / (+) No. 2
SAS expander
board
M3 x 4.5 mm
(silver)
C26192-Y10-C67
Phillips
PH2 / (+) No. 2
System board,
front panel
M3 x 6 mm
(silver)
C26192-Y10-C68
Torx Plus 6 ODD latch
M2 x 4 mm
(black)
C26192-Y10-C166
Phillips
PH1 / (+) No. 1
Front VGA M3 x 3.5 mm
(silver)
C26192-Y10-C102
Special bit insert TPM screw
REM 3 x 15 mm
(black)
C26192-Y10-C176

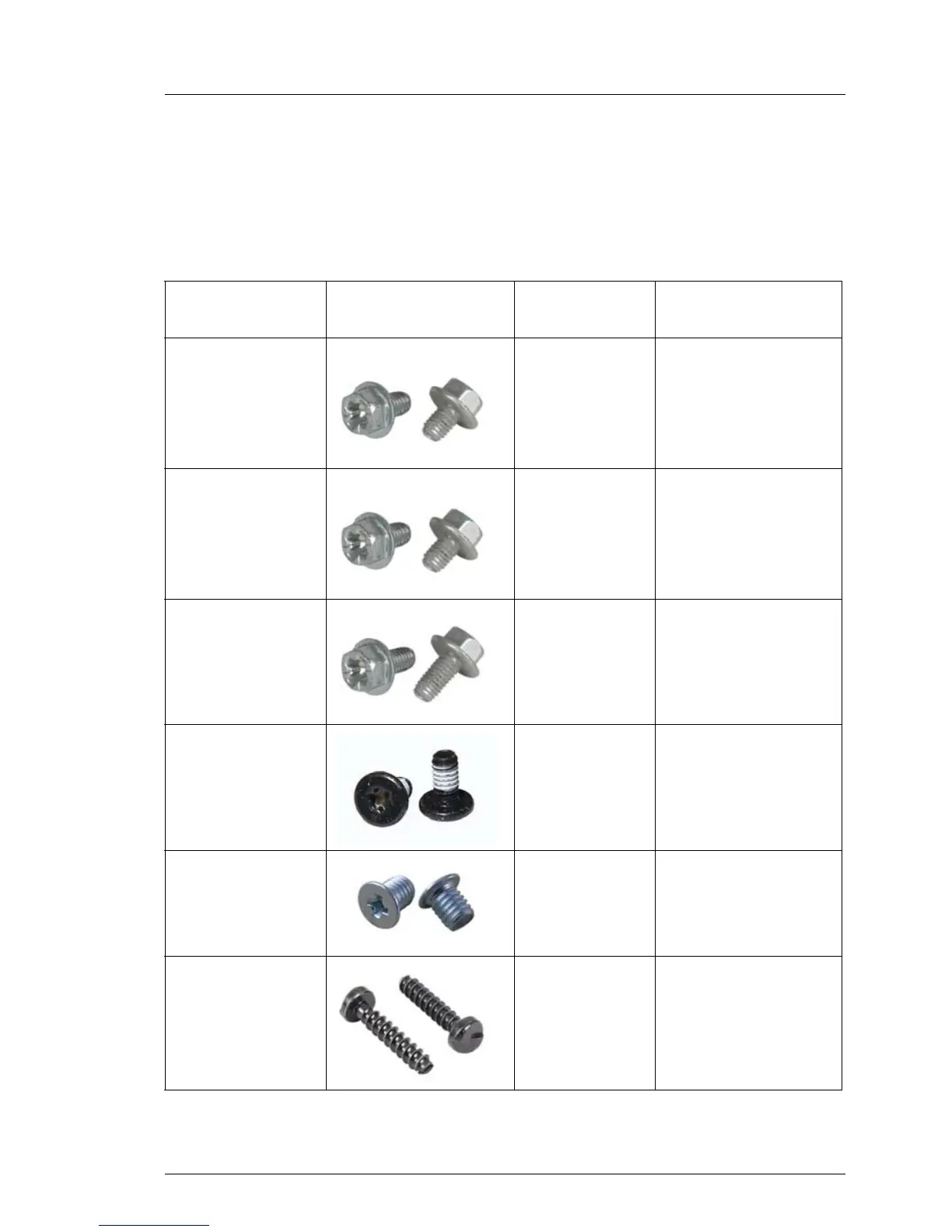

Table 2: List of used screws (not applicable for the Japanese market)
