112 Upgrade and Maintenance Manual
RX100 S8
Power supply

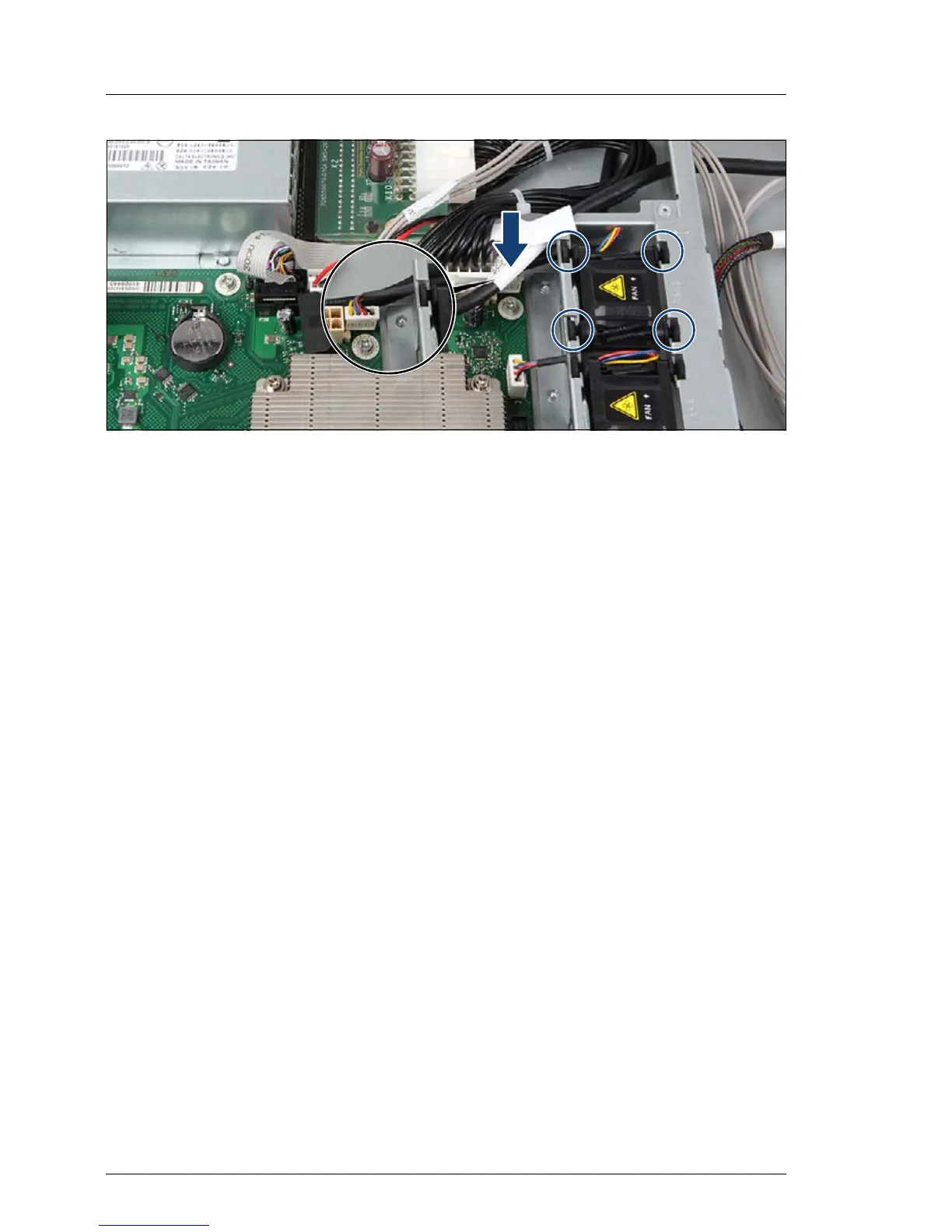

Figure 44: Installing fan module 5
Ê Press down the four rubber pins until they engage (see circles).
Ê Connect the fan cable to connector "FAN5" on the system board.
6.4.4 Concluding steps
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57
Ê "Enabling BitLocker functionality" on page 84
