RX100 S8
Upgrade and Maintenance Manual 111
Power supply
Installing the additional fan module

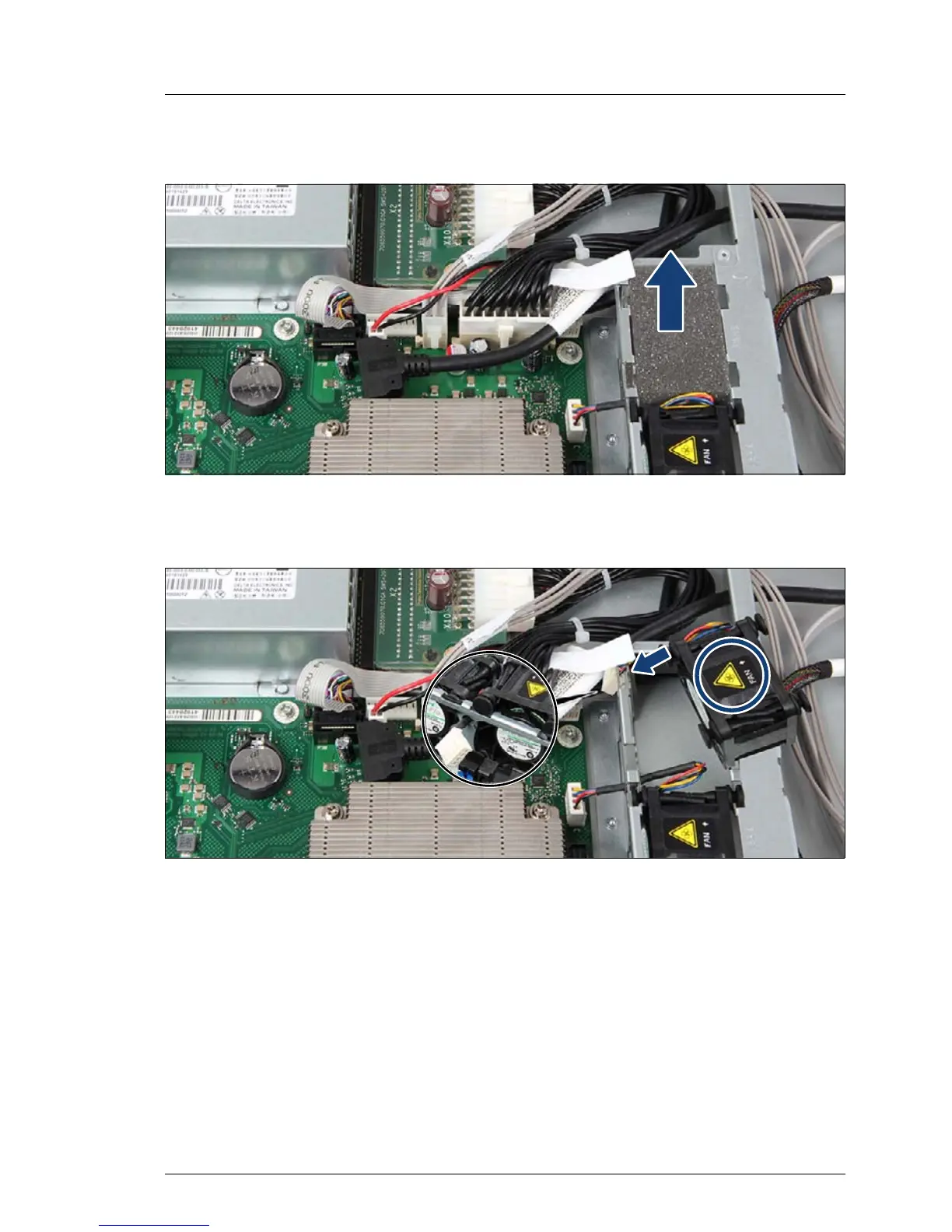

Figure 42: Removing the sponge
Ê Remove the sponge.
Figure 43: Routing fan cable
Ê Thread the fan cable through the opening of the fan cage and insert the fan
module. Notice the direction of the fan label (see circle).
