110 Upgrade and Maintenance Manual
RX100 S8
Power supply

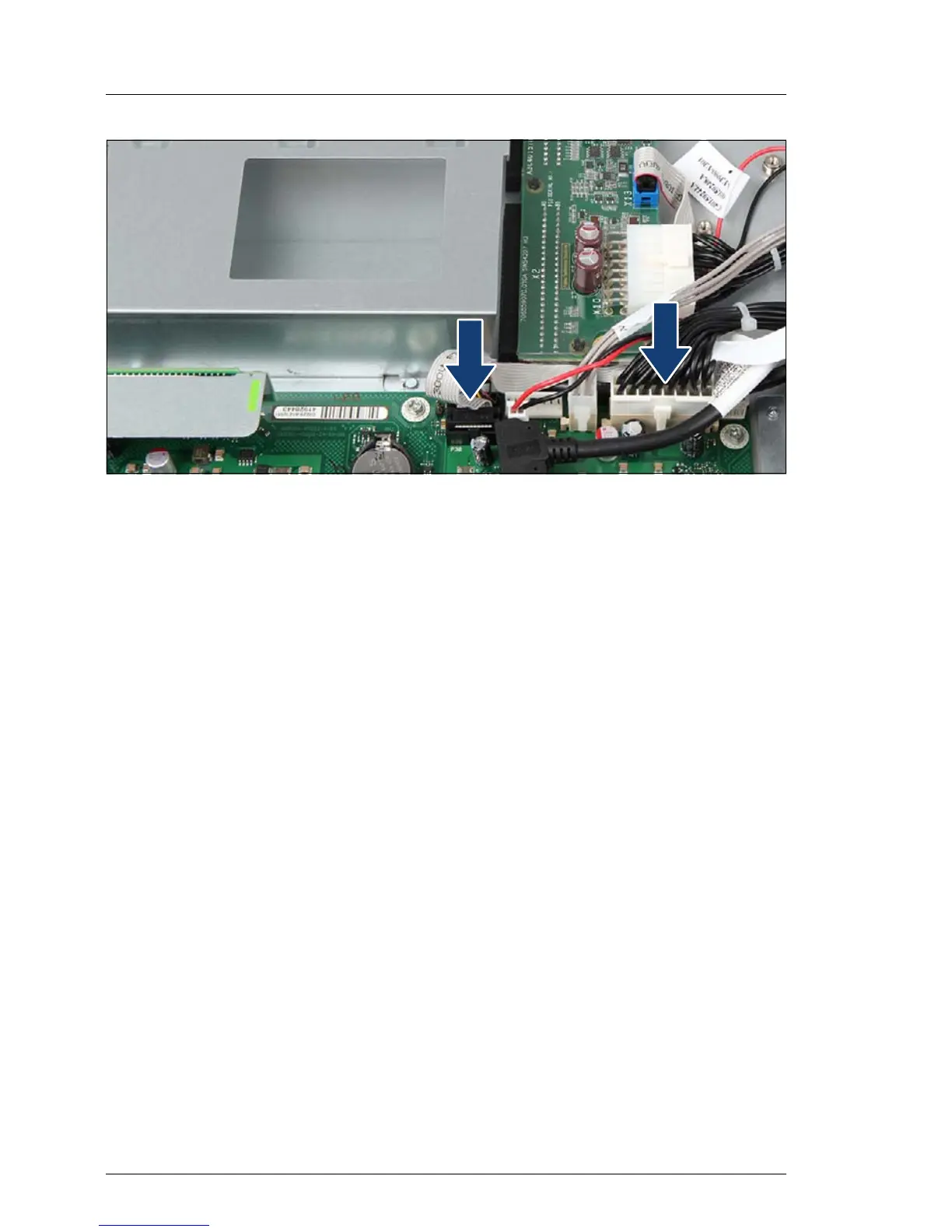

Figure 41: Connecting the power cables to the system board
Ê Connect the two power cables to the system board connectors "P30" and
"PWR1".
Installing hot-plug power supply unit and dummy cover
Ê Install the power supply unit as described in section "Installing a hot-plug
power supply unit" on page 98.
I The power supply unit must be installed in the first bay (left bay seen
from rear side). The dummy cover must be installed in the second
bay.
Ê Install the dummy cover as described in section "Installing the dummy cover"
on page 101.
