RX100 S8
Upgrade and Maintenance Manual 109
Power supply

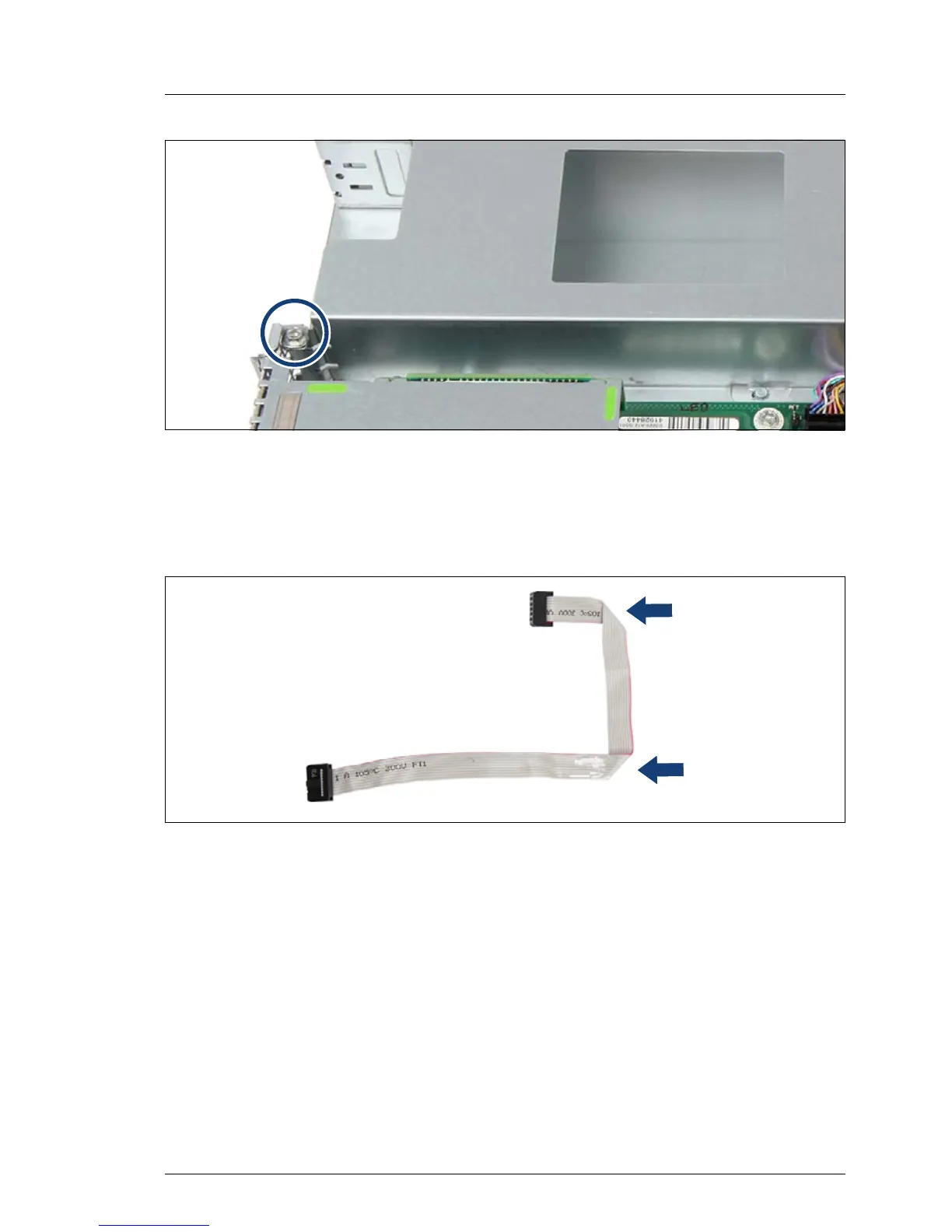

Figure 39: Fastening the PSU cage
Ê Fasten the PSU cage with one screw.
Installing the power distribution board
Figure 40: Folding the flat cable
Ê Fold the flat cable as shown.
Ê Install the power distribution board as described in section "Installing the
new power distribution board" on page 105.
