204 Upgrade and Maintenance Manual
RX100 S8
Main memory
10.1 Basic information

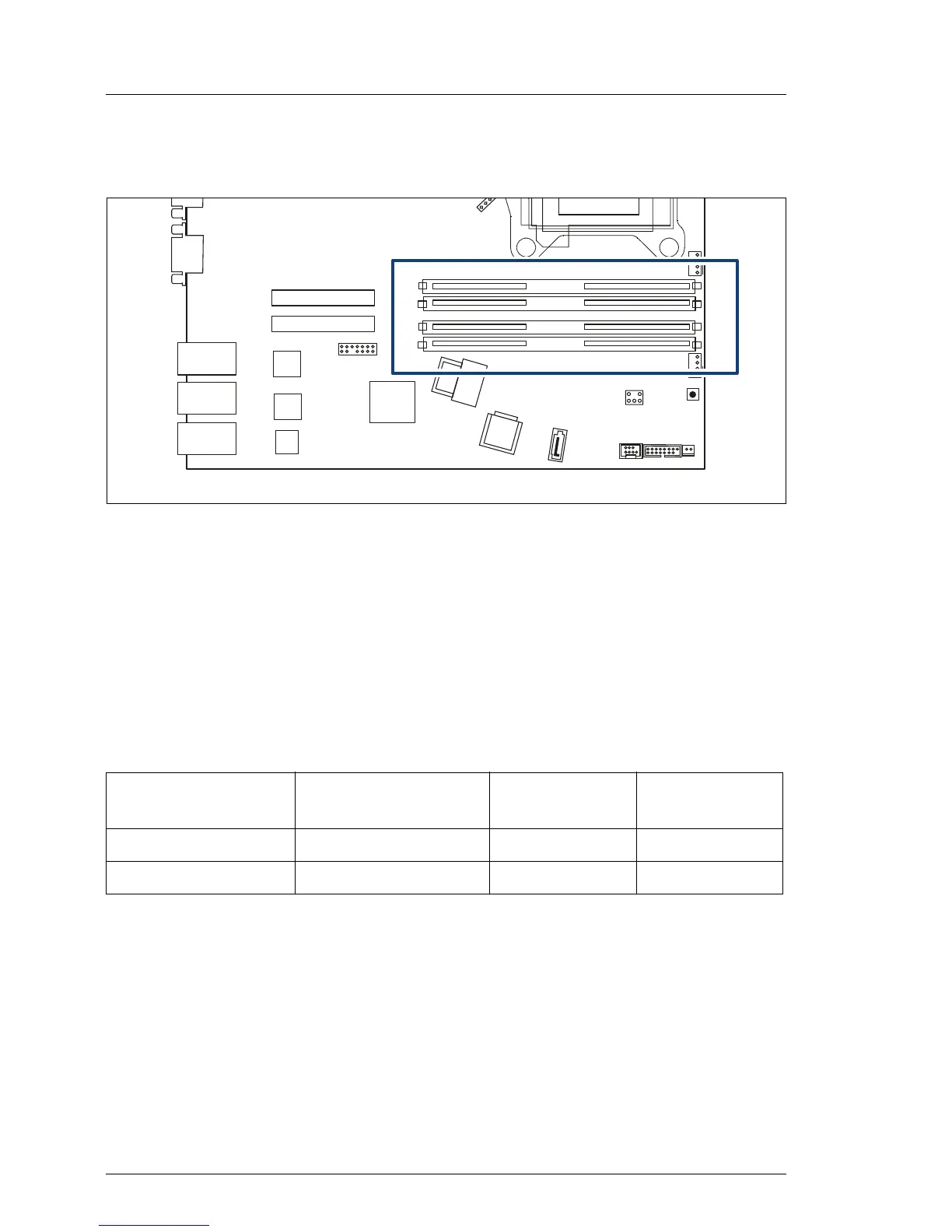

Figure 139: Slots of the main memory
The system board offers four slots for memory modules.
Types of memory modules
I For system relevant information, refer to your server’s hardware
configurator available online at the following address:
for the EMEA market:
http://ts.fujitsu.com/products/standard_servers/index.htm
for the Japanese market:
http://jp.fujitsu.com/platform/server/primergy/system/
Technology: DDR3 1600 unbuffered single rank (SR) or dual rank
(DR) UDIMM memory modules with ECC. Support for up
to 4 UDIMM memory modules.
Total memory size: up to 32 GB
Configuration per
channel
Max. speed DIMM-2 DIMM-1
1 DDR3-1600 empty SR/DR
2 DDR3-1600 SR/DR SR/DR
