164 Upgrade and Maintenance Manual
RX100 S8
Expansion cards and backup units

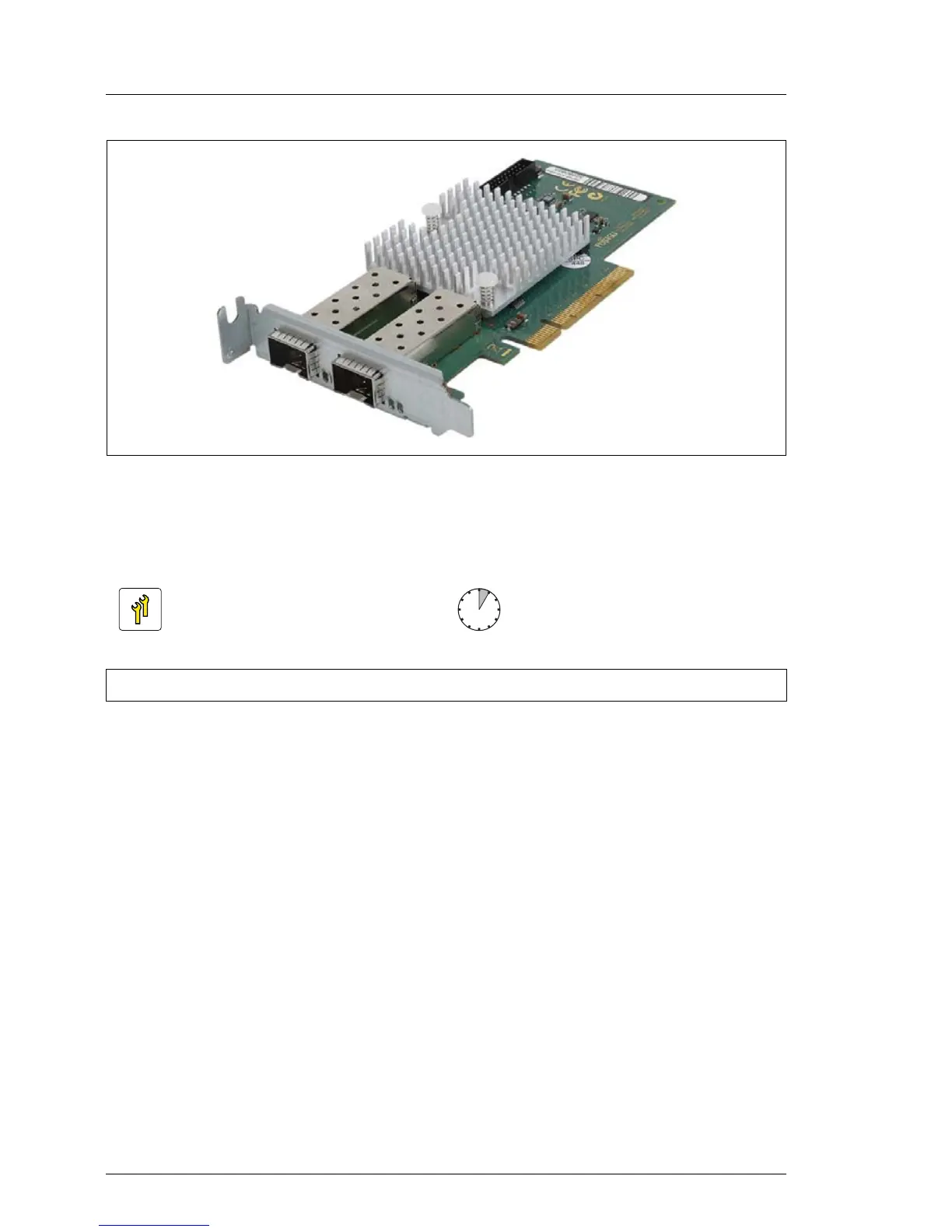

Figure 97: Assembled network adapter D2755
9.2.2 Removing a slot bracket
9.2.2.1 Removing the slot bracket
Ê Remove the two screws.
Ê Remove the controller from the mounting tabs on the slot bracket.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
