198 Upgrade and Maintenance Manual RX100 S8
Expansion cards and backup units
9.5.4.1 Preliminary steps
Ê "Shutting down the server" on page 45
Ê "Disconnecting the server from the mains" on page 46
Ê "Getting access to the component" on page 47
9.5.4.2 Removing the FBU with the holder
Ê Remove the FBU with the holder as described in section "Removing the
BBU with the holder" on page 196.
9.5.4.3 Disconnecting the FBU cable from the FBU

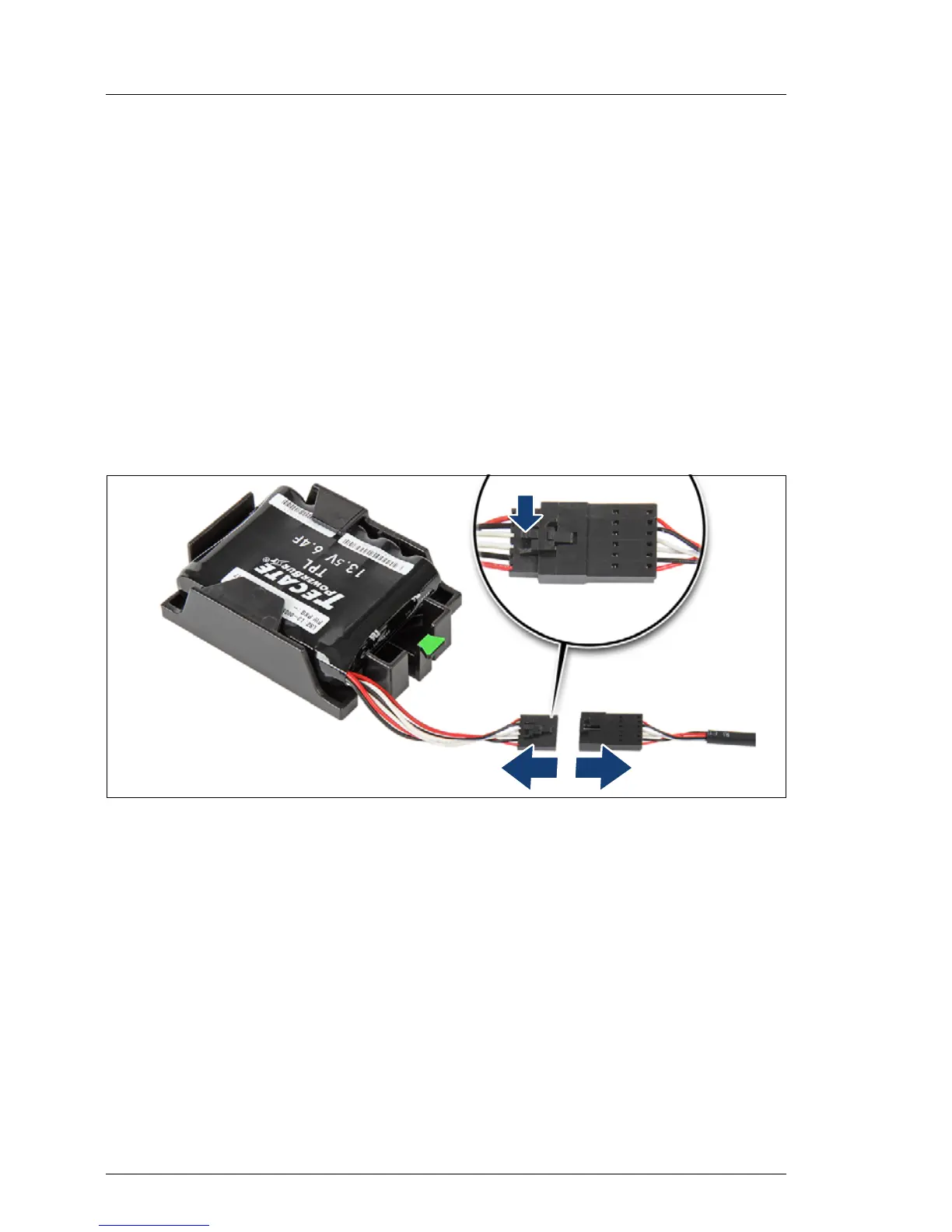

Figure 137: Disconnecting the FBU cable from the FBU
Ê Disconnect the FBU cable from the FBU.
