RX100 S8
Upgrade and Maintenance Manual
233
Fron
t pane
l
13.2.2
Removing the front p
anel module

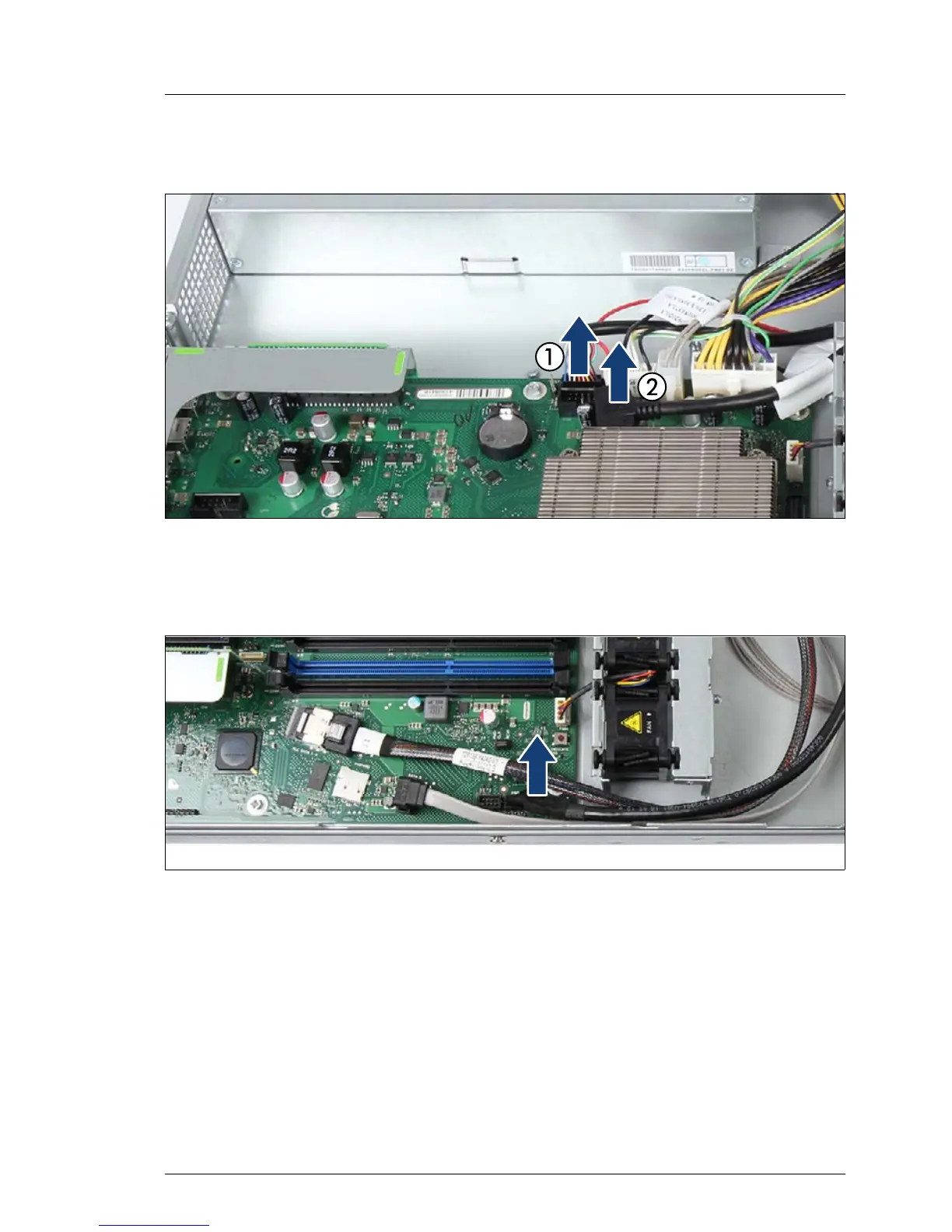

Figure 167: Disconnecting the cables (A)
Ê
Di
sconnect the front p
anel cable (1) and the front USB cable (2) from the
system board.
Figure 168: Disconnecting the cables (B)
Ê
If applicable, disconnect the front VGA cable from the system board.
232
234
