234 Upgrade and Maintenance Manual
RX100 S8
Front panel

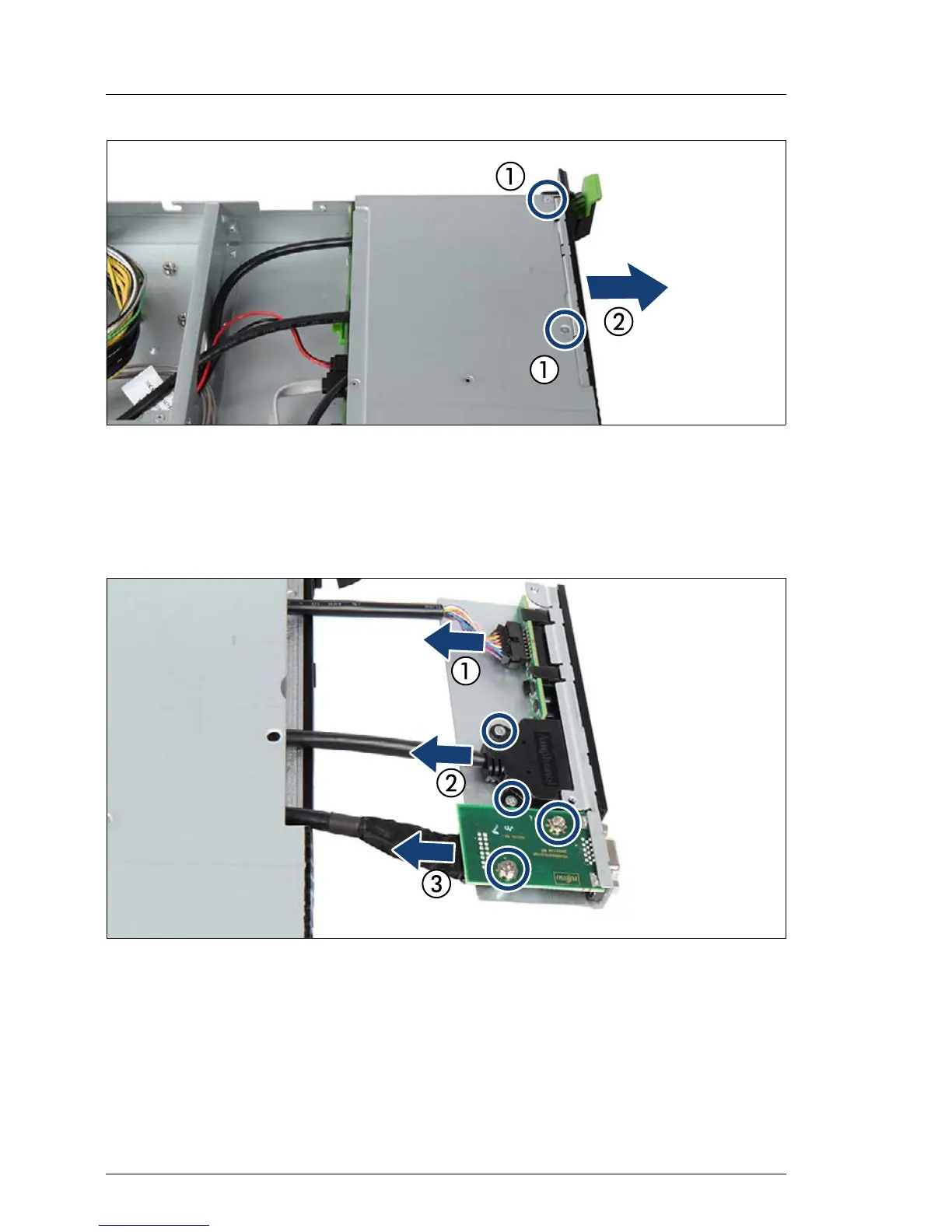

Figure 169: Removing the front panel module
Ê Remove the two screws (1).
Ê Pull the front panel module out of its bay (2) until the holder is completely
accessible.
Figure 170: Removing cables from the front panel module
Ê Disconnect the front panel cable (1).
Ê Remove the two corresponding screws and disconnect the front USB cable
(2).
Ê If applicable, remove the two corresponding screws and disconnect the front
VGA cable (3).
